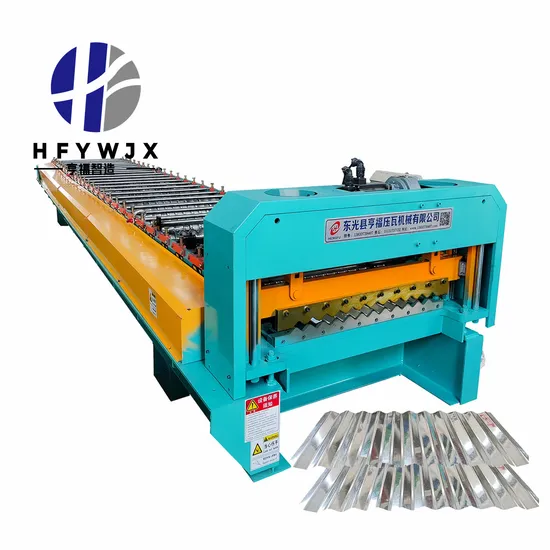

Arc Roofing Sheet Roll Forming Machine Steel Corrugated Roof Making Machine

Product Description

Basic Info.

Model NO	Cold hard board arc machine
Condition	New
Usage	Roof
Feeding Width	1000mm
machine frame	350H steel frame
Forming Speed	0-40M/min
Color	Custimized
Type of Driven	Chain drive
Transmission Method	Electric
Number of rolling mill sets	26 row molding
Spindle diameter	Φ70mm(Solid shaft)
Customized	Customized
Feeding method	Double hand rocking feeding rack (with pressure roller)
Specification	12000mmx1300mmx1400mm
Origin	Cangzhou, Hebei
Warranty	1 year
Usage	Roof

Product Description
Cold hard plate arc machine equipment, raw material for galvanized plate feed width is 1000mm. This equipment is made of 350H large steel for overall stability, 26 sets of roll forming design, and the main shaft diameter is 70mm solid shaft. The main motor power is 7.5kw servo. The production speed is 0-40m per minute, which greatly improves the normal efficiency. Double hand-operated feed molding to cut off double linear guide servo electric shear with alarm. Electric control system PLC frequency conversion control.

Raw materials	Galvanized steel
Machine frame	350H steel frame
Feed width	1000mm

Pattern diagram:
Processing Flow:
Detailed Photos

1. Framework: 350H steel
2. Number of rolling mill units: 26 rows for forming
3. Roll material: No. 45 steel is treated with outer circular grinding and electroplating
4. Spindle diameter: Φ 70mm
5. Feeding method:Double hand rocking feeding rack (with pressure roller)
6. Cutting: Cut after molding, double linear guide servo electric shearing, equipped with alarm
Company Profile
Hebei Hengfu Roll Forming Machine Co., Ltd. is a professional manufacturer of cold-bending forming equipment and its complete set of automated production lines. With advanced production equipment and product development and design capabilities, the products are at the leading level in the industry with the advantages of high rate, high precision, high flexibility, and low processing loss, and the products are favored by industry customers.
Our company's main products include: color steel plate equipment, glazed tile equipment, floor decking equipment, CIZ steel forming equipment, composite sandwich panel assembly line equipment, car compartment panels, dust removal anode plates and other equipment. We can design and manufacture special models according to user requirements, provide users with technical guidance, production installation, commissioning, and after-sales one-stop service.
In recent years, a large number of products have been sold to more than 50 countries and regions including Russia, India, the United Kingdom, Australia, Kazakhstan, etc., and have been well received by customers at home and abroad.
Company:
Workshop:
Customer & EXPO:
Certifications:
Transaction transportation:
FAQ


Q1: Are you a trading company or a factory?
A1: We are a manufacturer located in Cangzhou, Hebei. We have our own Having their own product design team. Welcome to visit our factory and inspect the quality of our machines on-site
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5: Can you finish the machine during the delivery time?
A5: We will finish the machine in time according to determined lead time.
