Popular Qt 4-15 Brick Making Machinery Full Automatic Clay Concerete Cement Block Production Line Block Machine

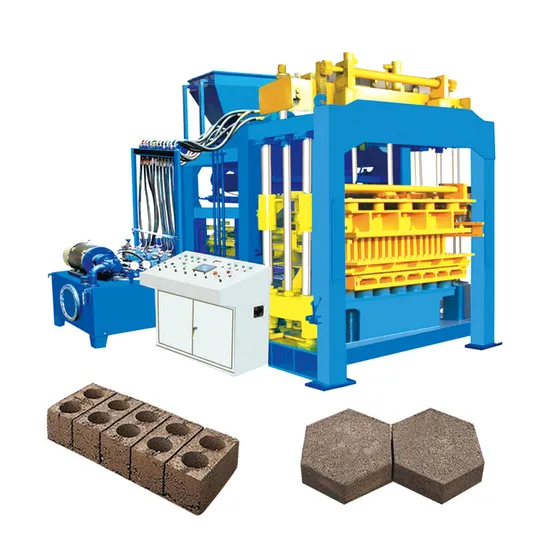

QT4-15 is a fully automatic brick machine. It can produce all kinds of popular brick types in the market and provide
customization. Such as red clay brick,cement bricks hollow bricks, solid bricks, interlocking bricks, colored paving bricks, curbstones, etc.
This type of brick making machine is developed by combining the advantages of several other manual brick making machines. The machine is designed with reasonable structure and advanced technology. Four vertical axis guidance, upper die push and pull, automatic scraping, reducer lifting mode. Thereby increasing block forming speed, increasing block density and reducing raw material consumption. It Only 2-3 people are needed for production and transportation. , and the investment is low, so this manual hollow block machine is very suitable for factories or family businesses.
Production Display

Product Parameters
Main machine technical parameters:

Overall dimensions of main machine	3700 × 2500 × 2850 mm
Rated pressure	21 MPa
Vibration mode	Table vibration
Vibration frequency	3200-4600 times/min
Pallet size	850×550 mm
Mold Period	15-20 seconds
Main Power	22.2 KW
Vibration force	90 KN
Factory area	200 m2
Product type	Hollow brick, cement standard brick, permeable brick, slope protection brick, pavement brick, curb stone and other concrete block bricks of various specifications
Raw material	Gravel, sand, cement, construction waste, fly ash, gravel, slag and other raw materials

Main products and specifications:
Product Application

Packaging & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
