Veterinary Ultrasound Equipment for Livestock Pregnancy Test with 7 Inch Monitor Portable

Product Description

KX5600G Veterinary Ultrasound Scanner
1. Application:
The KX5600G is a versatile and indispensable tool for standard ultrasound diagnostics, including comprehensive abdominal assessments and precise pregnancy evaluations.

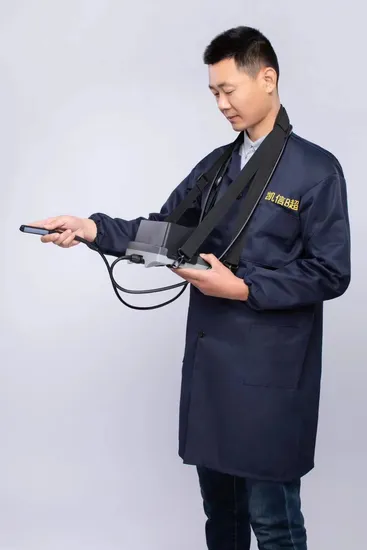

Main market: Ideal for pregnancy checks and follicular aspiration in large animals such as bovine, equine, ovine, canine, feline, goats, swine, and llamas.2. Feature:Weighs only 1.1kg. Ingeniously designed to be exceptionally lightweight and ultra-portable.Outfitted with a high-capacity lithium battery, ensuring over 6 hours of uninterrupted, reliable operation.Includes a sunshine cover, making it ideal for use even under the strongest outdoor sunlight.Designed for ambidextrous use, minimizing operator fatigue with seamless left/right hand alternation.Offers versatile usage methods, allowing hand-held, chest hanging, back hanging, and waist hanging options.Optional professional ultrasound goggles enhance outdoor usability, catering to diverse operational needs.Encased in a soft rubber coat, ensuring splash-proof and dust-proof protection.Boasts advanced features: 2 filter functions, 7 compression curves, 100-frame image permanent storage, 256-frame cine loop, and automatic calculation of swine back fat and lean percentage. 3. Tech Specification:

Monitor	7" high resolution LED display, with High brightness, high contrast, wide viewing angle, suitable for outdoor use
Display mode	B,2B,4B ,B/M,M
Gain	0~127dB
Contrast	27~90dB
Magnification	0.8,1.0,1.2,1.5,1.6,2.0,2.4,3.0
Storage	100 frames permanent storage
Cine loop	256 frames
Normal measurement	Distance, circumference, area (trochoid or ellipse), volume, etc.
Cardio measurement	Depth, slope, heart rate, cycle
OB measurement	Cattle, dogs, horses, pig, cats, goats, camels and sheep and pre-gestational age birth
Specifical for Swine	Back-fat and lean automatic calculation function /span>
Grid measurement	6 different(none,point grid,line grid, 10mm point ruler, 2mm point ruler, 10mm&2mm point ruler)

4. Configuration:
4.1 Standard configuration:

1	Main unit: 1 pc
2	6.5MHz linear rectal probe : 1 pc
3	Power adapter: 1 pc
4	Internal lithium battery: 1pc
5	Sunshine cover : 1 unit (A,B,C three sections adjustable)
6	Black plastic suitcase : 1 pc
7	Base Charger, belt, probe socket spatula: 1 pc for each

4.2 Optional Configuration:

1	4.0Mhz multi-frequency convex rectal Probe
2	6.5MHz multi-frequency micro-convex probe
3	3.5MHz multi-frequency convex probe
4	7.5MHz multi-frequency linear probe
5	3.5MHz Backfat probe
6	Lithium Battery (5500mAH)
7	Leather Case saddlebag
