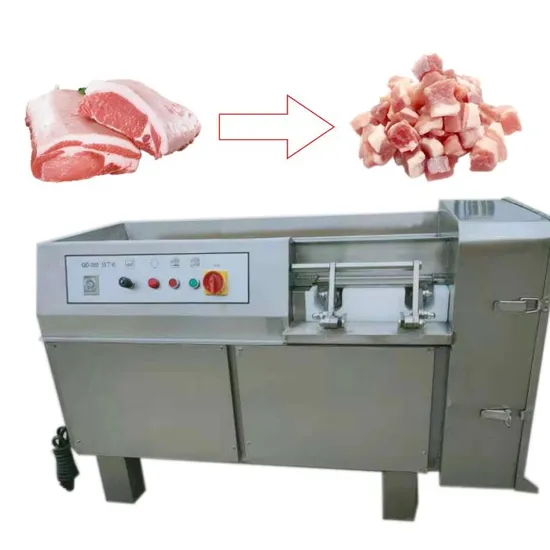

Full-Automatic Meat Dicer for Large-Scale Production Frozen Meat Cube Dicing Machine 2D/3D Meat Cube Dicer

Product Description

Product Description
This state-of-the-art machine boasts variable frequency speed regulation, PLC control, and an intuitive 7-inch touchscreen interface that rotates 90°. With its stepless speed change feature, users can effortlessly adjust both cutting speed and feeding length. Additionally, the machine dynamically adjusts the pressing wheel height in real-time to accommodate irregular material heights, ensuring perfect one-time block formation.
Feature
1. Equipped with an extra-wide blade and high stroke, this machine is ideal for chopping large bone-in meat (up to 300mm wide and 50mm high). Special users can customize the blade and stroke specifications. It efficiently chops pork chops, lamb chops, chicken, duck, goose, fish, as well as both bone-in and boneless, and even frozen (down to -5 degrees) meat and bone products.
2. Adjustable chopping thickness
Utilizing a combined integrated knife, this versatile machine can chop blocks ranging from 12-35mm in width and 1-100mm in length. The length, width, and cutting speed are fully adjustable via the touch panel, with a fine-tuning capability of 1mm.
Designed for combined use, the machine allows for the one-dimensional knife to be replaced, enabling slicing and strip cutting, thus significantly improving production efficiency.
3. Easy to clean
The feeding device is designed for quick disassembly and easy cleaning. The upper clamping device and gantry chopping knife are also cleaned efficiently, with meat and bone fragments, as well as sewage, being drained through the internal discharge port and sewage pipe.
Detailed Photos
Cutter Our Industrial Grade Meat Dicer features an extra-wide blade with a high stroke, meticulously designed for efficient chopping of large bone-in meat. It boasts a maximum chopping width of 300mm and a height capacity within 50mm. For specialized requirements, we offer customization of the extra-wide blade and high stroke to meet your exact needs.
Conveyor Belt The conveyor belt is engineered to accommodate larger quantities of poultry and meat. Crafted from food-grade nylon material, it ensures safety and health while offering high hardness and wear resistance. This results in an exceptional processing effect, making it an indispensable part of your production line.
Easy Operation Experience effortless control with our advanced variable frequency speed regulation and PLC control system. The 7-inch touch screen, which can be rotated 90 degrees, provides an intuitive interactive interface. It allows for stepless speed changes and lets you adjust cutting speed and feed length with unparalleled precision.
Cleaning Procedure Maintaining hygiene has never been easier with our quick-disassembly feeding device, upper clamping device, and gantry chopping knife. Cleaning is simple, and meat and bone particles, along with sewage, are efficiently expelled through the sewage pipe and discharge port, ensuring a spotless machine ready for the next use.
SPECIFICATION

Key Parameters
Items	XHH-300	XHH-500
Voltage	380V	380V
Power	3KW	5.5KW
Cuttiinh Speed	35-82 knives/min	35-82 knives/min
Material	304 SUS steel	304 SUS steel
Inlet Sizes	300 x 65mm	500 x 65mm
Weight	372kg	500kg
Dimension	1250mm * 600mm * 1270mm	1400mm * 900mm * 1370mm

APPLICATION
CETIFICATES
WORKSHOP
FAQ
1. Who are we?
We are Binzhou Xinhonghui Machinery Co., Ltd, a distinguished enterprise in the food machinery sector. As experts in the creation and distribution of top-notch meat processing equipment, we stand at the forefront of innovation and quality.
2. How can we guarantee quality?
We offer a comprehensive one-year warranty from the date of delivery. To ensure superior performance, every piece of equipment undergoes rigorous testing before shipment.Onlinetechnical supportfeaturing detailed video instructions.
3. What can you buy from us?
Our extensive product line includes a variety of meat processing equipment such as meat slicers, dicing machines, vacuum tumblers, meat bandsaws, injectors, kebab skewer machines, and vacuum packers. In addition, we provide customized ODM and OEM services to meet your specific needs.
4. Why should you choose us over other suppliers?
With over two decades of factory experiencein the food industry,we guarantee exceptional quality, reliable delivery, and efficient logistics through sea, land, and air channels.Our commitment to excellence extends to ourafter-salesservice, ensuring your satisfaction every step of the way.
5. Can we visit your plant before placing an order?
Absolutely! We warmly welcome you to visit our factory at your convenience. We are more than happy to assist with your travel arrangements to ensure a smooth visit.
6. What services can we provide?
a.Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP;
b.Accepted Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
c.Accepted Payment Types: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
