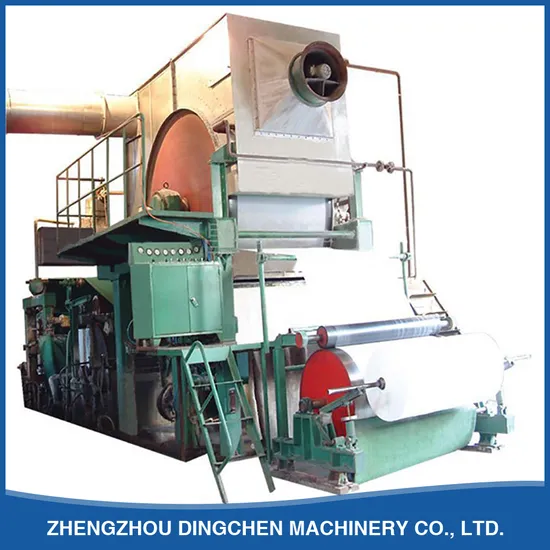

1092mm 2t/D Single-Cylinder & Single-Wire Toilet Tissue Paper Making Machine

Product Description

1092mm 2tons per day tissue paper production line
I.Technical parameters

1.Raw material	Waste paper
2.Output paper	Toilet tissue paper ;
3.Paper gram weight	15-30g/m2;
4.Paper width	1200mm ;
5.Width of cylinder	1450mm ;
6.Capacity	2T/D ;
7.Working speed:	50-90m/min
8.Design speed:	110m/min
9.Rail gauge	1800mm ;
10.Drive way	AC frequency converter , section drive ;

II.Main structure and characteristic of main part
1.Cylinder mould section:1500mm×1450mm×1800mm stainless steel plate cylinder mould 1 pcs , 400mm×1450mm×1800mm couch roll 1 pcs , rubber shore hardness 38ºC±2
2.Dryer section:2000mm×1450mm alloy dryer 1 pcs , 400mm×1450mm touch roll 1 pcs , rubber shore hardness 92ºC±2 , pneumatic loading device,double layer exhaust hood.
3.Winding section:600mm×1450mm winding cylinder 1 pcs , Model 250 reduction gears 1 set
4.Drive&control section :AC frequency converter , section drive Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
