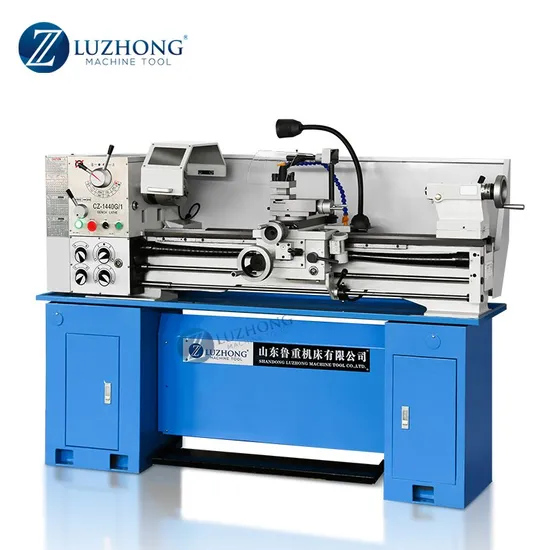

Monthly Deals Manual Mini metal horizontal torno CZ1340G-1 bench lathe

Product Description

Manual Mini metal horizontal Thread cutting torno CZ1340G-1 bench lathe for sale Product Description
Standard accessories:
Stand,4 jaw chuck,Work lamp,Coolant pump ,Brake ,Tool post wrench ,double end wrench,inner hexagon spanner ,screw driver ,center ,center sleeve ,oil gun ,tools box ,steady rest ,follow rest .3 jaw chuck
Optional accessories :
Drill chuck
Lead screw guard
4 jaw chuck seat
Taper shank
Work lamp
Tool post guard
Live centers
Coolant system
Chuck guard
Face plate
Taper turning attachment
Back plate Product Parameters

Roduct main technical parameters:

Specifications	Unit	CZ1340G/1
Swing over bed	mm	330
Swing over carriage	mm	195
Swing over gap	mm	476
Width of bed-way	mm	186
Distance between centers	mm	1000
Spindle taper		MT5
Spindle bore	mm	38	51
Step of speed		8	8
Range of speed	rpm	70-2000	84-1850
Spindle nose		D1-4	D5 with D5' chuck
Metric thread	mm	26 kinds(0.4-7)
Inch thread	T.P.I	34 kinds(4-56)
Module thread	M.P	16 kinds(0.35-5)
Diametral thread	D.P	36 kinds(6-104)
Longitudinal feeds	Mm/r	0.052-1.392(0.002''-0.0548'')	0.091-2.533(0.0036''-0.1005'')
Cross feeds	Mm/r	0.014-0.38(0.00055''-0.015'')	0.025-0.69(0.0012''-0.0345)
Diameter of lead screw	mm	22
Pitch of lead screw		3mm or 8 T.P.I
Saddle travel	mm	1000
Cross travel	mm	160
Compound travel	mm	70
Barrel travel	mm	95
Barrel diameter	mm	32
Taper of center	mm	MT3
Motor power	Kw	1.5(2HP)
Motor for coolant system's power	Kw	0.04(0.055HP)
Machine(L×W×H)	mm	1920x760x760
Stand (left)(L×W×H)	mm	440x410x700
Stand (right)(L×W×H)	mm	370x410x700
Machine(N.W/G.W)	Kg	505/565
Machine stand(N.W/G.W)	Kg	70/75

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
