Concrete Pumping Ready Mix Convey Concrete Diesel Powered
| US$5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HBTS60
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
25m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Power Type
Diesel
Max. Vertical Conveying Distance
80m
Max. Horizontal Conveying Distance
200m
Diesel Engine Power
129kw
Unique Selling Point
Long Lifetime
After Warranty Service
Field Maintenance and Repair Service
Transport Package
Container
Specification
580X200X175 cm, 4900KG
Trademark
shengmao
Origin
China
HS Code
8413400000
Production Capacity
50 Sets/Month
Product Description
Concrete Pump Electricity or Diesel PoweredDeliver concrete 120m in height and 500m in length
World famous brand main parts, Remote control, Easy to move
Product Description

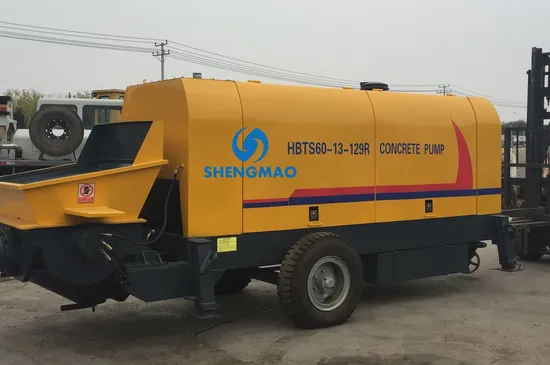

HBTS60R Concrete Trailer Pump
1. Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components' life is prolonged greatly. This is convenient for judging and removing trouble; 2. The electric control system is simplest, the element quantity is fewest and its reliability is highest. The wire remote equipment is convenient for operation far away;
3. The design of hopper and S valve and so on adopt I-DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage;
4. The hydraulic circuit will take high oil into double distributor, and then the lubricating part can obtain hydraulic oil. It ensures the lubrication of the concrete cylinder's piston and other parts and prolongs the life of piston and other seals;
5. The radiator equipment makes the working oil temperature of hydraulic system below 70ºC and makes the machine in normal status.
| Item | Unit | HBTS60R |
| Max. theo. concrete output (L/H) | m3/h | 80/40 |
| Max. concrete pumping pressure(L/H) | MPa | 13/7.6 |
| Distribution valve type | | S Valve |
| Concrete cylinder (diameter*stroke) | mm | Ф200*1,650 |
| Hopper capacity*feeding height | L*mm | 680*1,400 |
| Outlet diameter | mm | Ф180 |
| Inside diameter of delivering pipe | mm | Ф125 |
| Dimensions (L*W*H) | mm | 5,800*2,000*1,750 |
| Total weight | kg | 5,800 |
.
| Model | BS30 | BS30R | HBTS40 | HBTS40R | HBTS60 | HBTS60R | HBTS80 | HBTS80R |
| Power supply | electric | diesel | electric | diesel | electric | diesel | electric | diesel |
| Capacity | 30m³/h | 30m³/h | 40m³/h | 40m³/h | 60m³/h | 60m³/h | 80m³/h | 80m³/h |
| Motor or diesel engine | 56kw | 37kw | 45kw | 82kw | 90kw | 110kw | 110kw | 129kw |
| Max. Aggregate Diameter | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm | 50mm | 50mm |
| Steel pipe diameter | 80mm | 80mm | 125mm | 125mm | 125mm | 125mm | 125mm | 125mm |
| Engine Brand | Rongcheng | Weichai | Rongcheng | Weichai | Rongcheng | Weichai | Rongcheng | Weichai |
| Theoretical pumping distance (horizontal/vertical) | 400/120m | 500/120m | 500/120m | 800/160m | ||||
Our Service
| Pre-Sales Service * Providing solution for your construction project; * Providing design drawing as per your requirements; * Providing professional quotation for your inquiries. | After-Sales Service * Machine installation and test running; * Operators trainning and spare parts supply; * Machine problems solving (by phone or job site visiting). |
Packaging & Shipping
Our Projects
Product Parameters
| HBTS10R Diesel Concrete Pump Capacity: 10 m3/h | HBTS20R Diesel Concrete Pump Capacity: 20 m3/h |
| HBTS40R Diesel Concrete Pump Capacity: 40 m3/h | HBTS60R Diesel Concrete Pump Capacity: 60 m3/h |
| HBTS80R Diesel Concrete Pump Capacity: 80 m3/h | HBTS90R Diesel Concrete Pump Capacity: 90 m3/h |
| Concrete pump with crawler Capacity: 30m3/h to 90m3/h Both diesel type and electric type are available | Concrete pump with trailer Capacity: 30m3/h to 90m3/h Both diesel type and electric type are available |
