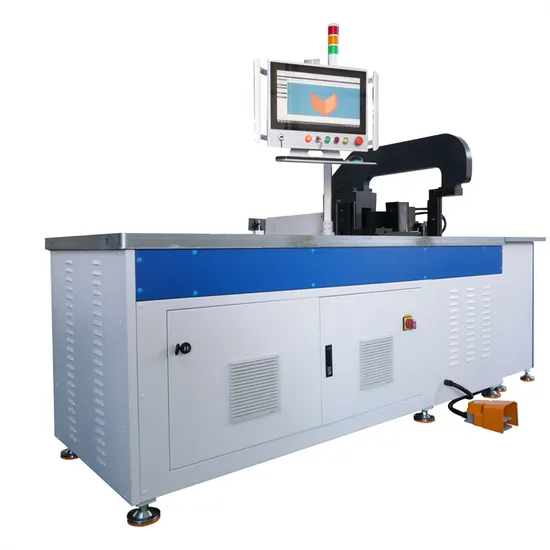

Next Generation Intelligent Hydraulic Busbar Bending Machine
| US$1,000.00-100,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
EMAC-BB-H
Condition
New
Certification
CE
Automation
Automatic
Suitable for
Copper, Aluminum
Type
Cnc Bending Machine
Motor Number
3
Working Units
3
Processing Material
Copper/Aluminum
Punch Thickness
15mm
Transport Package
Export Standard Free-Fumigation Wooden Case
Specification
weight: 1460KG
Trademark
BEIENE
Origin
China
Production Capacity
200 Set/Sets Per Month
Packaging & Delivery
Package Size
260.00cm * 130.00cm * 140.00cm
Package Gross Weight
2700.000kg
Product Description
Our Advantages 1. Whole-Installed Shipment
2. Windows All in One Touch Screen Computer:
3. First 3D Busbar Design Software which can read CAD or
Solid work drawings and Do Bending from your Drawing Directly!
4. Automatic Bending Gauge
5. Internet and Ready for your Industry 4.0:
Detailed Photos
Product Parameters
| Item | Unit | Parameter |
| Nominal Force | KN | 400 |
| Bender Accuracy | Degree | ±0.2 |
| Max Bending Stroke | mm | 250 |
| Automatic Stroke | mm | 1000 |
| Max Motion Speed of Side Striker(X Axis) | m/min | 15 |
| Bending Head (Y Axis) | m/min | Fast: 5; Low: 1.25 |
| Min Inner Width of U-shape Bend | mm | 40 (Note:Please consult us for smaller dimensions) |
| Max Bending Angle | degree | 90 |
| Level Bending (W*H) | mm | 160 × 15 (Customerized 250x20mm) |
| Vertical Bend (W*H) | mm | 125×15 |
| Total Power | kw | 7.2 |
| Main Machine Dimension: L*W | MM | 1500x1200x1200 |
| TOTAL Weight | kg | 2000kg |
Configuration:
| Control Section | ||
| Serial No. | Name | Brand Name |
| 1 | Programmable Control | OMRON |
| 2 | Sensor | Telemacanique From Schneider |
| 3 | Control Button | OMRON |
| 4 | Touch Screen | All In One Touch Screen Windows Computer |
| 5 | Computer | |
| 6 | AC Contactors | ABB |
| 7 | Circuit Breaker | ABB |
| 8 | Servo Motors | YASKAWA(Japan) |
| 9 | Servo Drivers | YASKAWA(Japan) |
| 10 | Control software and Three-dimensional computer-aided design | Gaoji Busbar Processing System(GJ3D) |
| Transmission System | |||||||||||||||||
| Serial No. | Name | Brand Name | |||||||||||||||
| 1 | Precision Straight rail | Taiwan HIWIN | |||||||||||||||
| 2 | Precision Ball Screw | Taiwan HIWIN | |||||||||||||||
| 3 | Bearing | Japan NSK | |||||||||||||||
| |||||||||||||||||
Exhibition photo
Our service
--- Inquiry will be replied within 2 hours.
--- All the way tracking service offered from placing order to delivery.
--- We can provide professional guide installation.
--- One year warranty and all round after sale service.
--- Customized design and flow chart are available for our clients.
--- Independent R&D team and strict & scientific management system.
