Coal Mine Shaft Winches Underground and Above Ground Lifting Heavy Objects Complete Specifications Lifting Winch
Basic Info.
Model NO.
JZ16/1000 Shaft Sinking Winch
Type
Electric Winch
Driven Type
DC
Speed
Fast
Carrying Capacity
Weight Level
Tonnage
1T
Reel Number
1
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE, ISO 9001
Standard
National Standards
Wire Rope Max. Static Tension (Kn)
160
Wire Rope Capacity (M)
1000
Drum Diameter (mm)
1000
Drum Width (mm)
1400
Drum Center Height (mm)
1050
Transport Package
Wooden Case or Carton Case
Specification
JZ16/1000 Shaft Sinking Winch
Trademark
zhongmei
Origin
Shandong, China
Production Capacity
10 Sets Per Month
Product Description
Introduction of Coal Mine Shaft Winches Underground And Above Ground Lifting Heavy Objects Complete Specifications Lifting Winch The structure of shaft sinking winch is winding type, mainly composed of spindle device, reducer, flexible coupling with brake wheel, working brake, safety brake, seat, motor and other components.zmwm02The spindle unit consists of: spindle, gears, reel, brake wheel, housing and bearings, etc. The speed reducer is a spherical worm gear vice decelerator with an additional level of variable speed gear. The speed change handle can be switched between fast and slow speed positions. The working brake is of the tile type, starting the motor, the electro-hydraulic pusher releases the brake, stopping the motor is a spring force brake. The full brake is a floating tile type, relying on the hammer to fall for braking and the electro-hydraulic pusher to release the brake.
Parameter of Coal Mine Shaft Winches Underground And Above Ground Lifting Heavy Objects Complete Specifications Lifting Winch
| Model | JZ10/800 | JZ16/800 | JZ16/1000 | 2JZ16/1000 | JZ25/1000 | JZ40/1000 | JZ40/1800 | |
| Wire rope Max. Static tension (KN) | 100 | 160 | 160 | 160 | 250 | 400 | 400 | |
| Wire rope Capacity (m) | 800 | 800 | 1000 | 1320 | 1000 | 1000 | 1800 | |
| Drum specification | Diameter (mm) | 800 | 1000 | 1000 | 1000 | 1050 | 1250 | 1250 |
| Width (mm) | 820 | 1400 | 1400 | 1400 | 1210 | 1480 | 2060 | |
| Center height (mm) | 900 | 1050 | 1050 | 1050 | 1326 | 1500 | 1500 | |
| Wire rope diameter | 32 | 40 | 40 | 40 | 52 | 60 | 60 | |
| Number of winding layers | 8 | 7 | 7 | 8 | 10 | 9 | 10 | |
| First layer rope speed | Fast (m/min) | 5 | 4.7 | 4.7 | 4.7 | 4.8 | 5.2 | 5.2 |
| Slow (m/min) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
| Electric motor | Model | YRT250M2-8 | YRT250M2-8 | YRT250M2-8 | YRT280S-8 | YRT280S-8 | YRT355S-8 | YRT355S-8 |
| Power (KW) | 22 | 30 | 30 | 55 | 45 | 90 | 90 | |
| Speed (RPM) | 730 | 730 | 730 | 723 | 723 | 730 | 730 | |
| Voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | |
| Dimensions | Length (mm) | 2883 | 3600 | 3600 | 5726 | 3980 | 4725 | 4305 |
| Width (mm) | 2962 | 3280 | 3280 | 3806 | 3935 | 4593 | 4593 | |
| High (mm) | 1728 | 2300 | 2300 | 2988 | 2620 | 3300 | 3300 | |
| Weight (kg) | 7480 | 11500 | 11500 | 18000 | 14680 | 35000 | 38000 | |

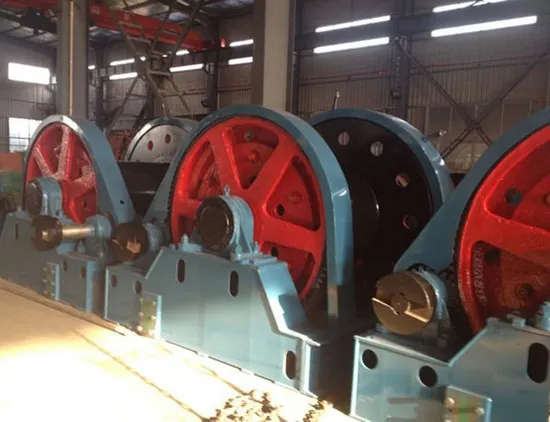

Pictures of Coal Mine Shaft Winches Underground And Above Ground Lifting Heavy Objects Complete Specifications Lifting Winch
