Micron 25um Small Cell Strainer Cap with Nylon Mesh Fit for Flow Cytometry Tube

Product Description

The cell strainer cap for a FACS tube, short for fluorescence-activated cell sorting tube, serves as an accessory to strain out undesired debris and clumps from the cell suspension prior to its analysis in a flow cytometer or FACS machine. These caps are typically equipped with a mesh or sieve-like structure that acts as a strainer, enabling the passage of individual cells while trapping larger particles. They are specifically designed to snugly fit atop a FACS tube, offering a convenient means to directly filter the sample into the tube.
Share Filters' cell strainers are crafted from precise nylon filter mesh with uniformly spaced pores, supported by a polypropylene (PP) frame. They come in various mesh sizes, ranging from 5μm to 200μm, each color-coded for easy identification. These caps, designed for 3ml and 5ml tubes, feature vented positions for optimal performance.
Feature of Share Filters' Mini Cell StrainerFor filtration of samples of flow cytometry or mass spectrometryStrainer made of precise nylon filter mesh with evenly spaced mesh poreWide range of pore sizes of mesh availableStrainer caps in different pore sizes are marked with different colors for easy indentifyingFit for 5 ml (φ12×75 mm), 3ml sampling tubesCan be non sterilized in bulk, pre sterilized and individually wrappedMade in China
Technical Data

Product name:	Mini cell strainer cap	Cage material:	Polypropylene
Application:	Use for dissociating cell suspension	Mesh screen:	Nylon filter mesh
Fit for:	3ml 5ml(∅12×75mm) flow tube	Micron rating:	5μm 10μm 20μm 30μm 40μm 70μm 100μm, 200μm, ect
Disposable:	Yes	Color:	Red, blue, yellow, clear, other custom color
Dimension:	Inner diam12mm, custom size	Package:	Plastic bag, master carton

Customization
We can also use other colors or materials instead of our available versions on request.
If the desired dimensions of the cell strainers are not included in our range, we can customize according to your specifications.

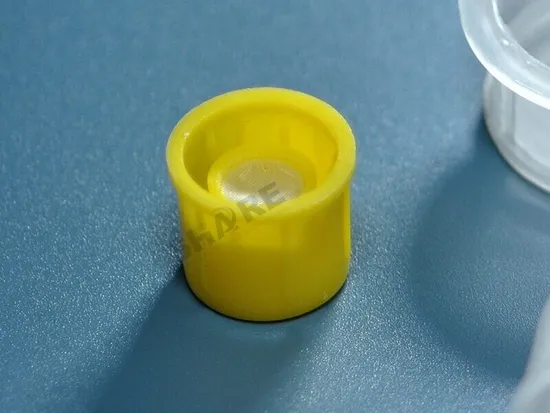

Product Pictures
Choosing the right cell strainer depends on what micron of cell and size test or flow tube that the sample is in. Once these are determined, the cell strainer cap fits right on the top of the tube tightly, so that all the material in the tube must pass through the strainer.

Nylon Filter Mesh Datasheet for Cell Strainer Cap

Fabric Number	Mesh Count		Thread Diameter	Mesh Opening	Open Area	Mesh Thickness	Weight
	n/cm	n/inch	μm	μm	%	μm	g/m2
PA 300/36	20	50	200	300	36	385	173
PA 267/41	24	60	150	267	41	285	117
PA 237/44	28	70	120	237	44	215	87
PA 213/41	30	76	120	213	41	225	94
PA 213/46	32	80	100	213	46	165	69
PA 178/41	36	90	100	178	41	178	78
PA 150/36	40	100	100	150	36	190	87
PA 152/43	43	110	80	152	42	135	60
PA 130/38	48	120	80	130	38	145	62
PA 120/44	56	140	60	120	44	85	44
PA 110/42	59	150	60	110	41	98	46
PA 100/37	64	160	60	100	38	105	50
PA 90/41	72	180	50	90	41	82	39
PA 75/36	80	200	50	75	36	90	43
PA 60/36	100	250	42	60	34	65	35
PA 42/25	120	305	42	42	24	75	42
PA 44/27	120	305	38	44	29	72	35
PA 42/25	120	305	38	42	25	67	35
PA 45/29	120	305	35	45	33	60	28
PA 55/42	120	305	30	55	40	52	20
PA 40/26	130	330	38	40	25	74	36
PA 42/30	130	330	35	42	29	62	30
PA 47/37	130	330	30	47	37	55	22
PA 32/20	140	355	38	32	21	68	36
PA 37/26	140	355	35	37	26	65	33
PA 38/28	140	355	30	38	33	53	25
PA 31/21	150	380	38	31	18	68	40
PA 35/27	150	380	30	35	29	57	26
PA 34/26	150	380	30	34	26	50	26
PA 30/25	165	420	30	30	25	59	28
PA 30/19	145	368	38	30	19	64	40
PA 25/21	180	460	30	25	21	60	31
PA 25/15	165	420	38	25	15	75	42
PA 20/16	200	508	30	20	16	65	34
PA 10/4.3	208	530	38	10	4.3	77	53
PA 8/3	220	560	38	8	3	78	56
PA 6/1.7	228	580	38	5	1.7	80	59

This just a part of specifications which common used.
Mesh count (n/cm), (n/in)
The mesh count stands for the number of openings per inch.
Mesh opening (μm)
The mesh opening w is the distance between two adjacent warp or weft thread.
Thread diameter (μm)
The thread diameter is measured on the thread before weaving.
Open area (%)
The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area
Other Mesh Filters for Medical and Healthcare
Example of Application
What Share Filters Do?
Factory Capabilities
Photos of Factory
Contact Us
Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.
Please connect with us now so we can learn more about your application and design specifications!
FAQ
Are You Factory or Trade Company ?
We're factory, and manufacture our products in-house.
Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.
Which Port You Ship?
Ningbo port.
Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.
What's Your Payment Term ?
T/T, LC, PayPal, and others.
What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.
What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.
Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.
How To Delivery the Order?
Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
