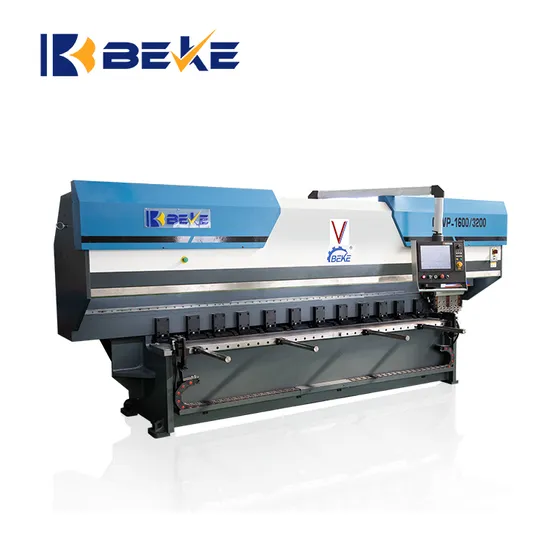

Beke Gnvp-1600/3200 V-Grooving Machine for Sheet Metal V Sharp for Stainless Steel
Basic Info.
Model NO.
Gnvp
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Main Motor Power
5.5kw
Cutting Degree
75m/Min(Max)
Pressure of Hydraulic System
7-9MPa
Min Height of Metal Sheet
0.5mm
Max Height of Metal Sheet
4.5mm
Specification
6350*2300*1700mm
Trademark
BEKE
Origin
China
HS Code
8462490000
Product Description
Product DescriptionDetailed Photos
Packaging & Shipping
Company Profile
Certifications
customer
Parametric
| Model | GNVP-1600X3200 | ||
| Machining Capacity | Plate | Material | Stainless steel, iron plate, copper, ect. |
| Length | 3200mm | ||
| Width | 8-1600mm | ||
| Thickness | 0mm-8mm(Sheet flateness less than 3mm) | ||
| Minimum dege | White steel knife 8mm alloy knife 10mm | ||
| CNC Specifics | Control Method | 4 axes CNC controlled X, Y, Z | |
| Display | 15-inch high-definition LCD touch screen | ||
| Storage Capacity | 99 groups can be stored, and 999 small V ports can be slotted in one group | ||
| Transfer Method | Ball screw/linear guide/rack and pinion | ||
| Machining Speed | X Axis Forward Speed | 4-38m/min(Stepless speed regulation) | |
| X Axis Backward | 4-120m/min | ||
| Tool Holder(Y1 axis) and end pressing material (Y2 axis) | 0.5m/min | ||
| Feeding(Z axis) | 6m/min | ||
| Machining Precision | Front and rear of planer head(X-axis) | 0.5mm | |
| Tool holder up and down(Y-axis) | 0.01mm | ||
| Feeding(Z axis) | 0.02mm | ||
| Driving Mode | Planer head(X-axis) | 5kw Mitsubishi Servo Motor | |
| Tool holder up and down movement(Y-axis) | 0.4kw Mitsubishi Servo Motor | ||
| Feeding(Z axis) | 1kw Mitsubishi Servo Motor | ||
| Clamping Device | Hydraulic clamping system | 1.5kw/8L/10Mpa | |
| Dimension | Length | 4800mm | |
| Width | 2850mm | ||
| Height | 2100mm | ||
| Weight | 9000kg | ||
| Table Flatness | ±0.02mm/M | ||
| Main Power | 380V/50HZ/3PH | ||
