Vmc1060 CNC Machine CNC Machining Center, CNC Milling Machine Standard 24 Tools

Product Description

VMC1060 CNC Machine CNC Machining Center, CNC Milling Machine Standard 24 Tools

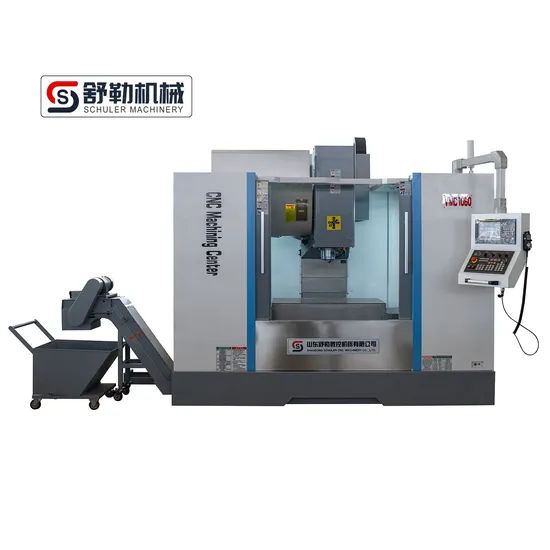

Product Pictures:
Performence Features:
1. Resin sand casting;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadsrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosed cover;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and Internet interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
The machine is equipped with an anti-impact device, which can absorb the vibration caused by the impact caused by the worker's operation error, so as to minimize the damage of the impact and ensure the original accuracy;
The oil and water separation design can effectively separate the lubricating oil from the cutting fluid, and prevent the cutting fluid from deterioration, affecting the processing quality.
CNC Milling Machine Technical Parameters:

ITEM	VMC-1060
X axis travel(left and right of worktable)	1000mm
Y axis travel(Forth and back of worktable)	600mm
Z axis travel(Above and below of spindle)	600mm
Distance from spindle nose to worktable	180mm~780mm
Distance from spindle center to column	600mm
T slot(width×No.)	18×5
Worktable size(L×W)	600×1300mm
Max. load on worktable	800kg
Motor power	7.5/11kw
Spindle speed	60~8000rpm
Spindle taper	BT40
Spindle axis	P4
3 axis fast moving speed	19m/min (X&Y)
	16m/min (Z )
Cutting feeding rate	1~5000mm
X/Y axis ball screw(diameter×space)	40mm×10mm
Z axis ball screw(diameter×space)	40mm×10mm
Min. set and moving unit	0.001mm
Tools changing style	spindle floating/manipulator
Time of tools automatic changing(near)	7/3.5s
ATC capacity	24pcs
Max. diameter of tool(near)×Weight×Length	80mm×7kgs×300mm
Position accuracy(300mm)	±0.005mm
Repeated position accuracy(300mm)	±0.003mm
Machine weight	7500kg
Air pressure	6kg/cm 2
Power of cutting coolant pump	370W
Power capacity	30KVA
Overall size(L×W×H)	3400×2750×2800mm

CNC Milling Machine Details Picture:
Standard Accessories:
FANUC control system.
Taiwan ROYAL Spindle: 8000rpm.
X/Y/Z axes: FANUC brand servo drive motor.
ATC from Taiwan.
USB information transfer.
Rough cutting of thread.
Full closed cover.
Automatic lubrication.
Coolant system.
Work lamp.
Tri-color indication lamp.
Air gun.
Heat exchanger in cabinet.
NSK bearings.
3-Axis linear guideway from Taiwan HIWIN/PMI.
Ball leadscrew from Taiwan HIWIN/PMI.
Optional Accessories:
Automatic chip conveyor& chip bucket(Chain type).
Spindle oil cooling.
SK-40 spspispindle.
Nitrogen balance system.
Spindle center water spray.
Spindle direct driven, spindle speed 12000 rpm.
250mm/315mm Taiwan TJR 4 axis 5 axis rotary table.
RENISHAW TS27R.
RENISHAW OMP60.
Air conditioner in cabinet.
CNC Millling Machine In the Workshop:
CNC Millling Machine Package Delivery:
---->We can guarantee on-time delivery ---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation. ---->Export case: wooden box with Tito, two, fumigation wooden box, ---->Mode of transport: transported by sea or rail to the customer's location.
Our Company:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Video
We can provide on-site training and commissioning Video
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
