CE Certificated 10 Ton Per Hour Pellet Machine Automatic Pig Feed Pellet Mill Soybeans Corn Pelletizer

Product Description

CE Certificated 10 Ton Per Hour Pellet Machine Automatic Pig Feed Pellet Mill Soybeans corn Pelletizer
Product Description
CM Series
CM Series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for chemical industry, fertilizer industry and sugar industry
Features
1.Drive mechanism adopts high strength belt, with steady running and low noise;
2.Drive mechanism adopts high quality bearing to ensure high speed and stable operation;
3.Feeding part is equipped with a permanent magnet to remove metallic impurities; this prolongs the service life of main parts and meanwhile reduce the use of auxiliary equipment.
Specification
CM Series

Parameter/Model	CM-25A	CM-25B	CM-30B
Output (kg/h)	1000-1200	1000-1500	1500-2000
Power (kw)	22	22	30
Feeding motor(kw)	/	0.75	0.75
Revolving Speed of ring die (r/min)	306	306	330
Inside diameter of ring die (mm)	250	250	304
Pellet diameter (mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension (m)	1.1*1.15*1.25	1.1*1.15*1.25	1.35*1.3*1.6

Detailed Photos

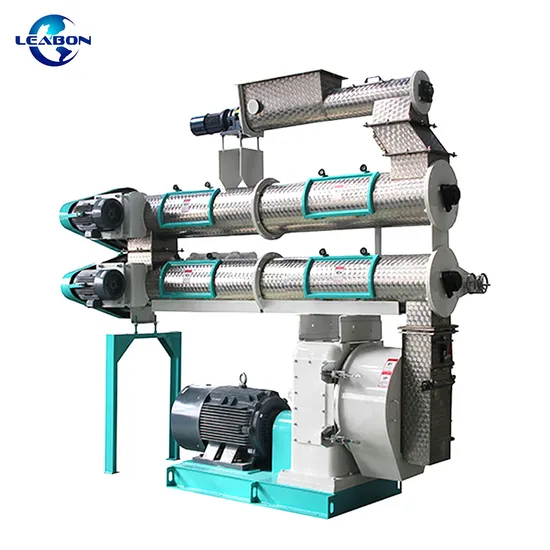

SZLH Series
Product Description
SZLH series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for chemical industry, fertilizer industry and sugar industry.
SZLH series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for chemical industry, fertilizer industry and sugar industry.
Features

1. The transmission gear direct connects with high precision,high transmission rate,stable work, ensure that the energy transfer. Output 15-20% higher than belt transmission.
2. All stainless steel door,organic outside material and observation window, easy to operate.
3. The machine drive system is the key position of imported bearing,oil seal,long working life, low noise.

4. All stainless steel feeder, varying pitch and arch structure,frequency control of motor speed control.
5. Add large stainless steel conditioning machine,using the axial inlet steam, greatly improve the effect of tempering and curing time.
6. The whole machine is equipped with iron and overload protection device,give full consideration to the protection of the host in use process.

7. Using new snake-like spring coupling,compensation, working more smoothly.
8. Can match single, double, multilayer jacketed conditioning device diameter or biaxial poor conditioning, meet the demand of production of high-grade livestock and poultry and aquatic products material.

Specification

Model	Main power (kw)	Out-put (t/h)	Power of Conditioner (kw)	Power of screw feeder (kw)	In-side of rind die (mm)
SZLH320	37	2-3	2.2	0.75	320
SZLH350	55	3-5	3	0.75	350
SZLH400	75/90	3-10	5.5	1.5	400
SZLH420	90/110	3-14	5.5	1.5	420
SZLH508	110/132/160	6-15	7.5	2.2	508
SZLH558	180/200	10-20	11	2.2	558
SZLH678	220/250	25-30	18.5	3	678

Detailed photos
Spare Parts
Raw Materials & Final Products
Application
Packaging & Shipping
company profile
Customer Feadback
FAQ

Q1:what's raw material suitable for making feed pellet? ------Corn,soybean,wheat,rice,wheat bran,fish meal,bone powder,meat, alfafa,silage,straw,grass, hay etc.

Q2:What's the capacity of your feed pellet machine can be choose? ------The SZLH series have 0.5-1.5T/H,2-3T/H,3-5T/H,3-10 T/H,3-14 T/H,6-15 T/H,10-20 T/H,25-30 T/H to choose from; the CM series have 100-200kg/h, 500-700kg/h, 1000-1200kg/h, 100-1500kg/h, 1500-2000kg/h to choose from.

Q3:What's the certification of your feed pellet machine? ------CE Certification.

Q4:What's the warranty of feed pellet machine? ------Warranty:1 Year(except spare parts).

Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram.
