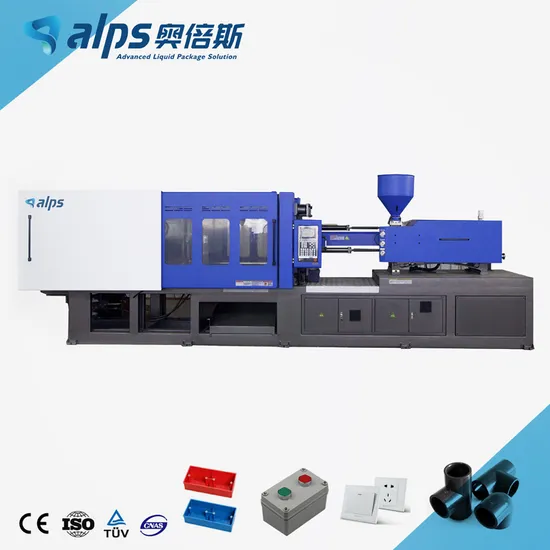

Low Loss Energy Saving Plastic Injection Molding Machine/Equipment

Low Loss Energy Saving Plastic Injection Molding Machine/Equipment

US$5,800.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
INJ-XXX
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Keywords
Injection Molding Machine
Clamping Force
950~8000kn
Controlled
PLC (Siemens)
Motor
Energy Saving Pump
Application
Pet Preform / Cap
Total Power
50kw
Voltage
Customed Avaiable
Transport Package
Wooden Case
Specification
18CBM
Trademark
Alps
Origin
Zhangjiagna City, China
HS Code
8477101090
Production Capacity
10 Sets Per Month

Product Description

Low Loss Energy Saving Plastic Injection Molding Machine/Equipment *We supplied clamping force ranges from 98ton to 3400ton injection molding machine. besides, we also have special machine for PVC, PET, Variable Pump, clear double color, servo-motor machine,high speed injection machine.
Technical Parameter:
Technical Parameter :Injection Molding Machine
Model
Clamping
Force
Shot weight A/B
Heat power
Pump power
Oil tank capacity
Dimensional
Weight
BST-1000A
1000KN
128g
162g
7.6KW
11KW
180L
4.3*1.5*1.6M
3.4t
BST-1320A
1320KN
188g
205g
8.2KW
13KW
200L
4.5*1.6*1.7M
3.9t
BST-1400A
1400KN
230g
252g
8.2KW
13KW
220L
4.8*1.6*1.7M
4.2t
BST-1650A
1650KN
286g
326g
8.2KW
15KW
250L
5.0*1.6*1.7M
5t
BST-1800A
1800KN
335g
378g
11KW
15KW
250L
5.3*1.6*1.8M
5.5t
BST-2050A
2050KN
415g
472g
11.6KW
17KW
270L
5.4*1.6*1.8M
6t
BST-2300A
2300KN
546g
592g
11.6KW
18.5KW
300L
5.7*1.8*2.0
6.5t
BST-2600A
2600KN
650g
690g
15.5KW
25KW
350L
6.1*1.7*1.8
8t
BST-3000A
3000KN
709g
760g
15.5KW
25KW
370L
6.5*1.8*1.8
9t
BST-3400A
3400KN
772g
826g
17.5KW
30KW
400L
6.7*2.0*1.9
10.8t
BST-3850A
3850KN
1008g
1072g
17.5KW
30KW
400L
7.0*2.2*2.0
11.8t
BST-4500A
4500KN
1430g
1512g
20.5KW
37KW
450L
7.3*2.3*2.4
13.8t
BST-4800A
4800KN
1590g
1670g
23.4KW
40KW
600L
8.3*2.2*2.2
16.2t
BST-5200A
5200KN
1980g
2130g
28.1KW
43.5KW
750L
8.6*2.2*2.3
20t
BST-5800A
5800KN
2230g
2430g
28.1KW
48.5KW
850L
8.75*2.2*2.3
21.8t
BST-6500A
6500KN
2745g
2870g
37.1KW
55KW
1000L
9.2*2.2*2.4
26t
BST-7500A
7500KN
3810g
3960g
40.9KW
67KW
1200L
10.7*2.3*2.7
38t
BST-8500A
8500KN
4200g
4350g
42.5KW
74KW
1300L
11*2.4*2.8
45t

Introduction :
High Efficiency Energy Saving Injection Molding Machine adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family.The LCD displaying screen with high clarity has Chinese and English language to use.Close-loop PID temperature control with the advantage of high precision.The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators's safety.
Details Photos :
Clamping Unit5-point twin toggle clamping system by modular optimization software designing.Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).
Injection UnitBaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.
Control UnitImported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.

Application :
Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.
Compnay introduction :
Alps Machine Co.,Ltd is ...
*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
Certification:
Our compnay complies with ISO9001:2000 Internation quality management system,also carries out the modern enterprises management systme ,to executes quality control during the processes of producing ,wins customer' recognition by the high quality products and services.
Welcom to visit us!


Sales Director: Mozzie Gu
Zhangjiagang Alps Machine Co., Ltd.
Add: 19 Renmin Road, Zhangjiagang City, Jiangsu Province, China
