Industrial Recycled Waste Cloth Fiber Crusher Textile Products Shredder Fiber Cutting Machine
Basic Info.
Model NO.
KL-800F
Power Source
Electric
Automatic Grade
Automatic
Warranty
2 years
Certification
CE, ISO
Name
Fabric Cutting Machine
Production
100-150kg/H
Application
Fabric/Waste Cloth/Paper Plate
Shearing Motor
8p 7.5kw
Conveying Motor
4p1.5kw
Reducer Speed Ratio
55:1
Shearing Motor Pulley
140
Main Machine Size
3100*1000*1100mm
Transport Package
Wooden Case
Specification
3100*1000*1100mm
Trademark
Kellen
Origin
China
Packaging & Delivery
Package Size
320.00cm * 320.00cm * 120.00cm
Package Gross Weight
500.000kg
Product Description

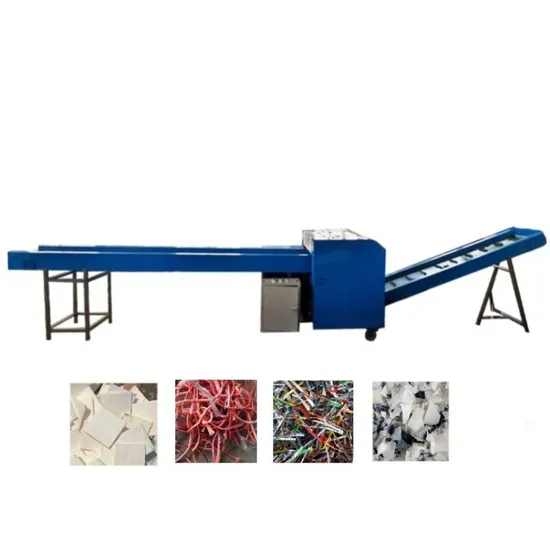

Product DescriptionFiber cutting machine
Fiber cutting machine Shredder equipment can quickly cut, chop, Waste cloth, denim, waste clothes (clothing), sponge, cotton, textile waste silk, recycled silk, mess, textile products, medical waste shredder, medical waste soft needle shredder, leather, plastic film, paper, trademark, cloth label, paper plate, sticker nameplate, hangtag, phenolic board, non-woven fabric, glass fiber, hemp fiber, flax, sisal, kenaf, chemical fiber Nylon, polyester, polypropylene, polypropylene and other man-made fibers and a variety of soft material fibers.
Product Parameters
| Model | KL-800F | KL-1200F | KL-1600F | KL-2400F |
| Shearing motor | 8P 7.5kw | 8P 15kw | 8P 18.5kw | 8P 25kw *2 |
| Conveying motor | 4P1.5kw | 4P 2.2kw Frequency conversion motor | 4P 3.0kw Frequency conversion motor | 4P 4.0kw Frequency conversion motor |
| Reducer model | 100# | 120# | 125# | 135# |
| Reducer speed ratio | 55:1 | 55:1 | 55:1 | 55:1 |
| Shearing motor pulley | Φ140 | Φ160 | Φ180 | Φ180 |
| Moving cutter | Φ300*400 | Φ400*600 | Φ500*800 | Φ600*1200 |
| Distribution box | Distribution box | Independent electrical cabinet | Independent electrical cabinet | Independent electrical cabinet |
| Input belt | 1400*330mm | 3000*520mm | 3000*720mm | 3000*1100mm |
| Output belt | 3.0kwFan/Conveyor Belt | 4.0kwFan/Conveyor Belt | 7.5kwFan/Conveyor Belt | 11kwFan/Conveyor Belt |
| Moving cutter | Alloy tool steel 8 | Alloy tool steel 6 | Alloy tool steel 8 | Alloy tool steel 8 |
| Fixed cutter | Alloy tool steel 2 | Alloy tool steel 2 | Alloy tool steel 2 | Alloy tool steel 2 |
| Main machine size | 3100*1000*1100mm | 6250*1450*1570mm | 6340*1650*1630mm | 6363*2043*1770mm |
| Shearing size | 10mm | 10mm | 10mm | 10mm |
| Production | 100-150kg/h | 250-350kg/h | 450-650kg/h | 800-1000kg/h |
Detailed Photos
Product display
Packaging & Shipping
Company Profile
