Product Description

CHINA GOODA-VM-1525NC Specifications

VM-1520NC Specifications
No.	Item	Description	Specifications
1	Model	CNC gantry milling machine	VM-1525NC
2	Cutting capacity	Max. machining length mm	2500
		Max. machining width mm	1500
		Max. processing height mm	500
3	Worktable	Worktable size mm	1200*2000

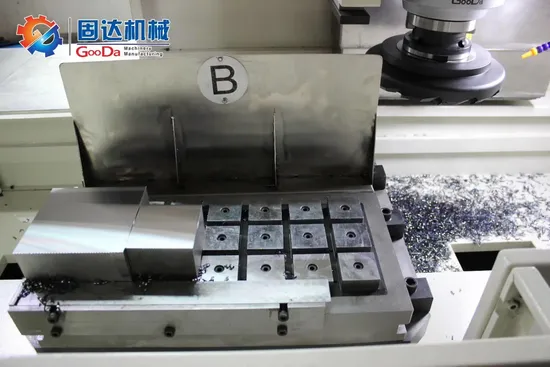

		Magnetic table mm	1200*2000
		Max loading weight kg	6000
		Table T groove specification mm	22*150*7
4	Gear type milling head	Spindle power kw	15
		Spindle taper	BT50(7:24)
		Speed of mainshaft C/S	50-500
		Cutter diameter mm	250
5	Z-axis balance system	Nitrogen counterweight	2 PCS
6	Chip removal device	Automatic chip removal device	Double sides
7	Travelling speed	X axis moving speed mm/min	0-8000
		Y axis moving speed mm/min	0-8000
		Z axis moving speed mm/min	0-8000
8	Motor power	X,Y,Z axis motor KW	3,3,3
		Chip-removal motor KW	1/2
9	Sheet metal cover	U protect	Half cover
10	Dimension & weight	Net width of inside	1500
		Machine area mm	6800*3700*3400
		Machine weight Kg	18000

Features and applications: High rigidity and high precision mechanism structure
High quality HT300 cast iron is purchased for main structural parts. Heat-Treat for stress relief and increase the stability, with stable structure and permanent quality assurance. This machine are equipped with the large ( 300mm optional) diameter cutters, which enable the one-pass cutting of up to ( 300mm) in width, eliminating the ridges that are made with cutting with the smaller diameter cutter. Mainly used for pre-squared steel plate and non-ferrous metal materials for flat surface. Machine bed base with chip removal groove, wider and more stable base, smooth chip removal. FAQ:
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI etc. It depends on your choice.
3.When is the delivery time?
Conventional Machines,We will delivery then within 30-45 working days after received your
deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
Packing: PE bag cover inside+ Plywood box + Steel beam frame.
5.How can I choose the most suitable machines ?
Please let us know your machining demand or machine size ,we can choose the best model
for you , or you can choose the exact model by yourself. You can also send us the products
drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
FOB, CFR,CIF or others terms are all acceptable.
7. What is your payment terms ?
Payment Terms : T/T 30% advance , 70% before shipment.
Company Profile We are the first manufacturer to produce the high-end CNC machine in China, who focusing on developing and supplying the high efficiency, high accuracy, and high quality of CNC duplex milling machines and exchange-pallet vertical CNC milling machine.
Our aspiration is to be flexible in implementing customer requirements, guarantee the high reliability of the milling machine, ensure that spare parts are available at short notice and facilitate the prompt availability of service engineers.

Advantage
Certification
Cooperative Partner
Maintenance and repair
The benefits of GOODA maintenance contract (After sales 3 years): Basic requirement in a certified QS system Guarantee for the accuracy of the measuring and test results Calibration, maintenance and, if necessary, repair with just one visit Fixed prices with a clear breakdown of costs Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts The maintenance contract includes: Travelling time and expenses for our technician Maintenance and calibration work Small items required for carrying out the specified maintenance work Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards
