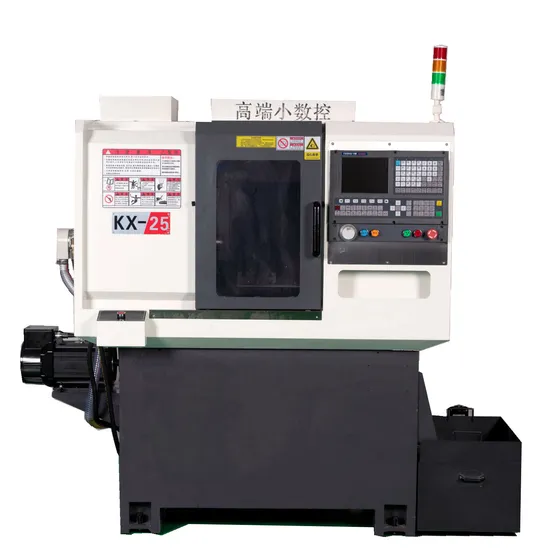

High Precision Horizontal Metal Turning Slant-Bed CNC Lathe Machine
Basic Info.
Model NO.
KX-25
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001, Eac
Condition
New
Spindle Bore(mm)
25
Repeatability (X/Y/Z) (mm)
+-0.005
Tool Post Stations
5
Voltage
380V
Max. Spindle Speed (r.p.m)
4000 r.p.m
Spindle Motor Power(Kw)
3.7
Travel (Z Axis)(mm)
180 mm
Spindle Speed
4000
Travel (X Axis)(mm)
500 mm
No. of Spindles
Single
Max. Length of Workpiece (mm)
180
Number of Axes
3
Precision
0.01mm
Positioning Accuracy (mm)
+-0.01
CNC Control System
Nanjing Kt / Syntec / GSK
Transport Package
Wooden Case
Specification
1400*1200*1650mm
Trademark
YASHU
Origin
Guangdong, China
Production Capacity
500 Set/Sets Per Month
Packaging & Delivery
Package Size
220.00cm * 170.00cm * 190.00cm
Package Gross Weight
2000.000kg
Product Description
Product Description
| Machinery Specification | |||||||||
| Specification | Parameter | Optional | |||||||
| LATHE | Slant bed degree | 30° | |||||||
| Clamping way | Hydraulic clamping | ||||||||
| Tool form | Row of knives | ||||||||
| PART | Guide rail | Taiwan 25 Linear guideway | |||||||
| Ball screw | Taiwan 25 ball grinding precision | ||||||||
| Bearing | 7015/7013 XEZ | ||||||||
| Ground to spindle center height | 1080mm | ||||||||
| Spindle motor | 3.7kw DMC servo motor | ||||||||
| Feed servo | 1.2kw DMC servo motor | ||||||||
| CNC Control System | NANJINGKT 820Ti | SYNTEC/GSK/LNC | |||||||
| Application scope of processing | Normal Use Value | Maximum Value | |||||||
| Working ability | Spindle bore | φ25mm | φ25mm | ||||||
| Maximum particle diameter (disc type) | 200mm | 300mm | |||||||
| Maximum length of workpiece to be processed | 150mm | 180mm | |||||||
| Single side cutting of stainless steel | 2mm | 2.5mm | |||||||
| Repositioning accuracy | ±0.01mm | ||||||||
| Smooth finish | 1.6RA | ||||||||
| Center height of tool rest | 40mm | ||||||||
| Turning diameter | φ350mm | ||||||||
| Square tool specification | 16mm | ||||||||
| Travel | X axis travel | 500mm | |||||||
| Z axis travel | 180mm | ||||||||
| Feed | X-axis fast moving velocity | 25m/min | 30m/min | ||||||
| Z-axis fast moving velocity | 25m/min | 30m/min | |||||||
| X axis servo power | 1.2KW | ||||||||
| Z axis servo power | 1.2KW | ||||||||
| Spindle | Spindle speed | 3500r/min | 4000r/min | ||||||
| Spindle motor power | 3.7KW | ||||||||
| Spindle nose | A2-4 | ||||||||
| Support hydraulic chuck size | 5 inch | ||||||||
| Dimensional & weight | Dimensions | 1750*1350*1700mm | |||||||
| Weight | 1500KG | ||||||||
Details Images
