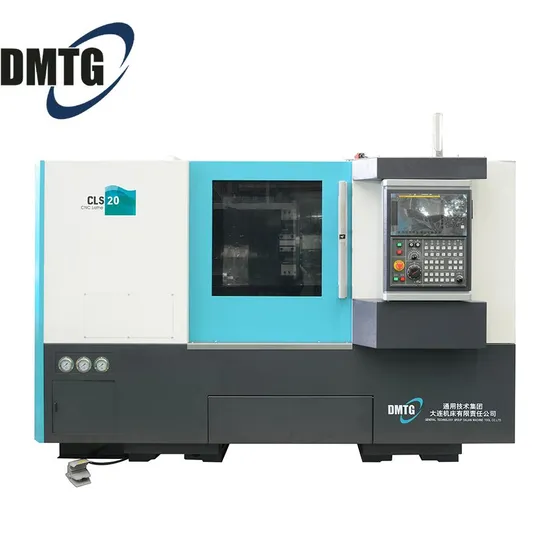

Dmtg Ktl44s/500 Cls20 CNC Turning Machining Center Lathe Machine

Dmtg Ktl44s/500 Cls20 CNC Turning Machining Center Lathe Machine

US$22,000.00
1-4 Pieces
US$18,000.00
5+ Pieces

Basic Info.

Model NO.
CLS20
Process Usage
Metal-Forming CNC Machine Tools
Numerical Control
CNC/MNC
Processing Precision
0.07~0.08(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Transport Package
Wooden Case Packing
Trademark
DMTG
Origin
Liaoning
Production Capacity
100 Sets/Month

Product Description

DMTG KTL44S/500 CLS20 CNC Turning Center With Price CNC Turning Machining Center Lathe Machine CNC Lathe Machine
CAPACITY Swing over bed mm 440
Max. turning length mm 450
Max. turning diameter ( shaft / disc ) mm 260/300
Guideway type Linear guideway
SPINDLE Chuck size Inch 8
Spindle nose ISOA2-6
Spindle bore mm 62
Spindle speed rpm 4500
Spindle motor power Kw 11/15
Spindle torque Nm 93/127
Max bar diameter mm 51
TRAVEL X-axis travel mm 160
Z-axis travel mm 500
X-axis rapid traverse m/min 20
Z-axis rapid traverse m/min 24
TOOL POST Turret type and tool number Hydraulic 8-station turret
Tool shank size mm 25x25
Indexing time(adjacent/farthest) s 0.45/1.2
TAILSTOCK Diameter of tailstock quill mm 80
Tailstock quill travel mm 130
