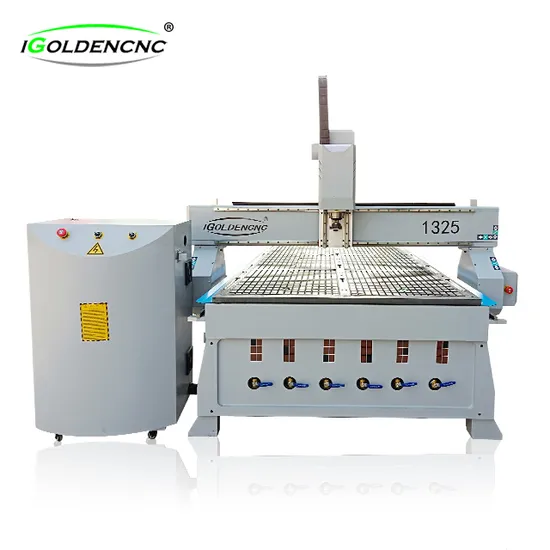

1325 3 Axis MDF Board Cutting Door Carving Woodworking 4X8 Wood Router Engraving CNC Machine
| US$3,920.00-4,129.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
iGW-3A-1325
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Keywords
CNC Router Machine
Spindle
4.5kw Air Cooled Spindle
Control System
DSP/ Mach3
Transmission
Rack and Gear
Guide Rail
20mm Square Guide Rails
Table
Vacuum + T Slot
Motor
Famous Stepper 450b
Software
Artcam
Product Name
Woodworking CNC Router
Transport Package
Wooden Case
Specification
1325
Trademark
IGOLDENCNC
Origin
China
HS Code
84659900
Production Capacity
2000 Per Year
Product Description
1325 3 Axis MDF Board Cutting Door Carving Woodworking 4X8 Wood Router Engraving CNC MachineParameters of cnc wood router engraving machine:
| NO. | Model | IGW-1325 |
| 1 | Working area | 1300x2500x200mm |
| 2 | Working table | Vacuum absorb table with T-slot or Aluminum table |
| 3 | Spindle | 3kw/4.5kw/5.5kw/6kw air cooling spindle |
| 4 | Cooling system | Air cooling |
| 5 | Control system | DSP or NC Studio |
| 6 | Inverter | Fuling inverter |
| 7 | Transmission | XY-axis Rack gear,Z-axis ball screw |
| 8 | Guide rail | Square HIWIN guide rail from Taiwai |
| 9 | Ball screw | Taiwan TBI ball screw |
| 10 | Drive system | Servo motor and driver |
| 11 | Machine body | Square tube welding body |
| 12 | Limit Switch | Japan Omron |
| 13 | Electrical components | France |
| 14 | Traveling speed | 30m/min |
| 15 | Working speed | 20m/min |
| 16 | Control software | Artcam/Type3,other CAD/CAM |
| 17 | Command code | G Code*.u00*.mmg*.plt |
| 18 | Voltage | AC220V/380V-50HZ/60HZ |
| 19 | Name | 1325 3 Axis MDF Board Cutting Door Carving Woodworking 4X8 Wood Router Engraving CNC Machine |
Applications of cnc wood router machine:
1.Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc;
2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,etc;
3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC, etc;
4.Decoration::acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper.
Company information: iGoldencnc group is one of manufacturing and research and development of the company that focus on CNC engraving machine and cutting machine for many years since 2002. Located in Jinan,shandong province,covers the area of 6000 square meters.
Our products have been certified by various parties, including CE, ISO9001 and FDA. Products can meet different needs of customers. Advanced technology, experienced engineers and first class service are our fundamental guarantee.
