Portable Tapping Machine 220V 50Hz M16 Tapping Machine with Touch Screen

Product Description

Product Overview
Electric tapping machine:
The electric tapping machine can easily tap lead, copper, steel, cast iron, pig iron, die steel, metal materials and other metal materials. It is suitable for all machinery manufacturing industries. It can complete ultra-deep hole tapping several times the diameter of the screw hole at one time, which is efficient and labor-saving, and can satisfy most Thread processing requirements.
Product features:
1.This machine adopts servo drive control with intelligent torque protection, which gets rid of the limitations of traditional lathes, drilling machines or manual tapping.
2.Continuously variable speed, manual, automatic, linkage three working modes, you can choose.
3.The serpentine plastic wire and conduit protect the circuit and do not affect the rotation of the fuselage.
4.The safety torque clamp ensures less damage to the tap and high tapping accuracy.
Product Parameters

Model	M12	M16	M24	M30	M36	M48
Voltage	180-250v
Power	600w	600w	1200w	1200w	1200w	1200w
Tapping range	M3-M12	M3-M16	M6-M24	M6-M30	M6-M36	M16-M48
Max. radlus	1000mm	1000mm	1200mm	1200mm	1200mm	1300mm
Way to work	vertical/universal
Tapping chuck	GT12,M3-M12	GT12,M3-M16	GT24,M6-M24	GT24,M6-M30	GT24,M6-M36	GT48,M16-M48

Because there are ten years of focus, so there is now a professional, everything is for when you just need, I just in, looking forward to your consultation.
Detail Images
Collets and taps.
This shop provides ISO, DIN and JIS collets, which are suitable for different countries to produce different accessories, and can be selected according to needs. At the same time, there are different taps, thread drilling and tapping.chuck include JIS,DIN,ISO,which can be choosed. Controller and display screen.
The controller can control the power and protect the torque overload,Support multiple language settings, which can be set according to needs,, control and adjustment of wire feed and withdrawal speed. Tapping cabinet.
Cabinets have different specifications, colors and weights. As optional accessories, customers can decide whether to buy them according to their own needs. The cabinet part can be separated from the tapping machine arm, which is convenient for disassembly and movement, and is not easy to be damaged during transportation. Overall structure.

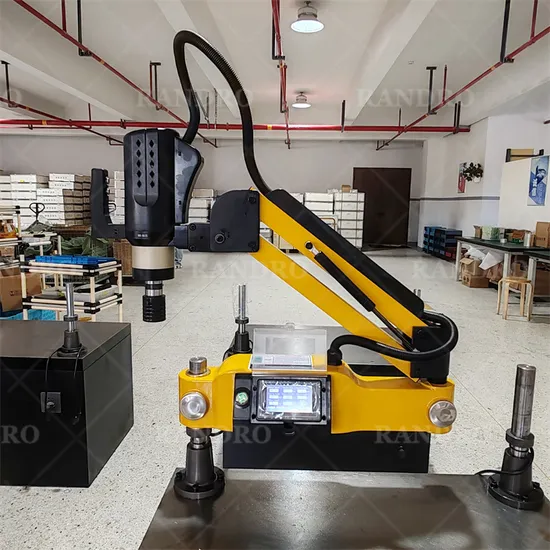

The tapping machine is composed of a tapping machine arm and a tapping machine cabinet. The arm includes a chuck, a tap, and a servo motor, which is an extremely important part of the machine. The overall structure is simple, and the single tapping effect is excellent.
Customer feedback

Company Profile
Henan Randro Machinery Equipment Co., Ltd. is an enterprise specializing in the production of CNC machine tools, lathes, machine tools, and rolling presses. Our products have passed the international ISO9001:2008 quality management system certification. We have established good relationships with customers from over 100 countries.
Main Products: The company operates various specifications of products, including cold bending forming equipment and other mechanical equipment, such as machine tools, tapping machines, slotting machines, boring machines, air hammers, gear hobbing machines, nail making machines, marking machines, etc. There are a wide variety of products, welcome everyone to visit and guide the factory!

FAQ
Q1. How to choose an appropriate machine ?
The machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.Q2. What about the delivery term?
Generally speaking, we need about 30 days to deliver the machine. If you require a short time to deliver the machine, we can make it in short time due to a large number of spare parts we stored.Q3. Why are the machine prices higher than others?
We insist quality drives the value for our customers. From each step of the machine producing till the choosing of the electric elements brands, We all take it very seriously.Q4. Do you have after-sales support?
We have a professional after-sales team. If required, we can send our engineers to go to the customers' site to guide to the machine installation and debugging.Q5. How to get a quotation?
1. Please tell we what kind of raw material and the max. thickness, and the profiles designs. Then I can quote you accordingly.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
