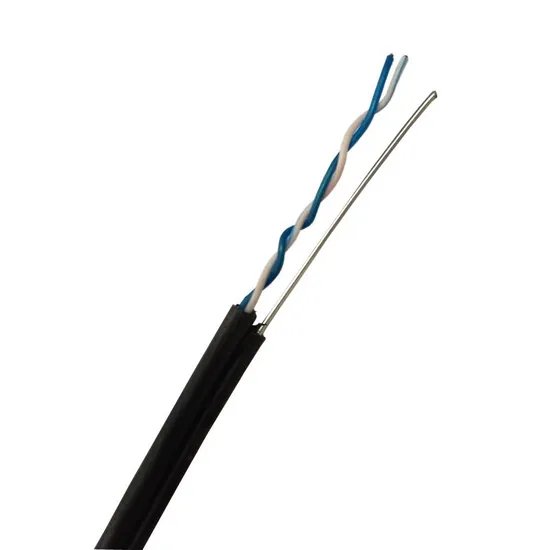

Drop Wire UTP Unshielded Twisted Pair Messenger Telephone Cable

Product Description

Product Description Drop Wire CableApplicationThe cables are designed for use as connection between central offices. The cables are suitable for installation in ducts, direct burial in the ground and also for aerial installation with integral suspension strand. Jelly filled option is for subscriber's cables installed underground or along the edge of pavement. An armoured option is offered for direct burial installations. A figure-8 self support option is offered for aerial installation.Standards• DIN VDE 0816ConstructionConductorsSolid annealed bare copper 0.4/0.6/0.8mm, as per class 1 of DIN VDE 0295/ BS 6360/IEC 60228InsulationCellular polyethylene 2YI2 type as per VDE 0207-2Twisted PairsInsulated conductors are twisted into pairs with varying lay length to minimize crosstalkCabling ElementStar QuadsCable Core Assembly4 Cores are twisted into star quad. 5 star quads are stranded into a basic unit. 5 or 10 basic units each are stranded into one main unit. The star quads are grouped in units and stranded in layers to form the cable core.Standard make up is per VDE 0816 in the Cable Make Up DiagramCore WrappingOne or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap. These tapes furnish thermal, mechanical as well as high dielectric protection between shielding and individual conductorsMoisture BarrierA layer of aluminium tape (0.2mm) coated with PE-copolymer on one or both sides is applied longitudinally with overlap over the cable core to provide 100% electrical shielding coverage and ensures a barrier against water vaporSheathBlack low or medium density polyethylene 2YM2 type as per VDE 0207-3, being able to withstand exposure tosunlight, temperature variations, ground chemicals and other environmental contaminantsRipcordRipcord may be provided for slitting the sheath longitudinally to facilitate its removalSpare Pairs (optional)Spare pairs may be provided for large pair cablesContinuity Wire (optional)Tinned copper drain wire may be longitudinally laid to ensure electrical continuity of the screenOptional ConstructionJelly Filled CableThe cable core interstices are filled with petroleum jelly to avoid longitudinal water penetration within the cable. The water resistant filling compound is applied to the air space between non-hygroscopic tape and shield,shield and sheath within the cable coreArmoured CableCorrugated steel tape armour is applied over an optional inner polyethylene sheath with an overlap. An outer polyethylene sheath is applied over the armour Type Code

A-	Outdoor Cable
02Y	Cellular Polyethylene (FOAM PE) insulation
F	Continuous core filling
(L)2Y	Laminated sheath(copolymer-coated aluminium tape laminated to PE outer sheath)
SR	Corrugated steel tape
b	Armouring
T	Messenger of galvanized steel wires
StIII	Star quad in local cables
Bd	Unit-type stranding

Electrical Properties

Nominal Conductor Diameter	mm	0.4	0.6	0.8
Conductor Gauge Size	AWG	26	-	20
Conductor Size	mm2	0.126	0.283	0.5
Maximum Average Conductor Resistance @20°C	/km	143	63	34.6
Minimum Insulation Resistance @500V DC	M.km	5000	5000	5000
Maximum Mutual Capacitance @800Hz 95% of all values	nF/km	40	40	40
100% of all values	nF/km	42	42	42
Capacitance Unbalance @800Hz pair-to-pair
K1 100% of values max	pF/500m	980	800	800
98% of values max	pF/500m	420	400	400
K9-12 100% of values max	pF/500m	800	300	300
90% of values max	pF/500m	200	100	100
Maximum Conductor Loop Resistance @20°C	/km	300	130	73.2
Impedance @0.8KHz		994	665	500
Maximum Average Attenuation @0.8KHz	dB/km	1.45	0.91	0.68
Dielectric Strength 50Hz
Conductor to Conductor (2mins)	V AC	500	500	500
Conductor to Screen (2mins)	V AC	2000	2000	2000
Maximum Operating Voltage Peak Value	V	150	225	225
Nominal Insulation Thickness (Air Core)	mm	0.20	0.25	0.3
(Jelly Filled)	mm	0.26	0.36	0.44
Nominal Insulated Conductor Diameter (Air Core)	mm	0.8	1.1	1.4
(Jelly Filled)	mm	0.92	1.32	1.68
