Horizontal Ribbon Blender Cocoa Powder Mixer

Horizontal Ribbon Blender Cocoa Powder Mixer

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
DH-JD
Application Area
Food
Certification
CE
Condition
New
Stirring Type
Spiral
Working
Shear Mixer
Name
Horizontal Ribbon Blender Cocoa Powder Mixer
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Circular Groove
Operating type
Continuous Operating
Transport Package
Plywood Wooden Carton
Specification
CE
Trademark
DAHEPACK
Origin
China
HS Code
84743900
Production Capacity
30units/Month

Product Description


Horizontal Ribbon Blender Cocoa Powder Mixer
Introduction:

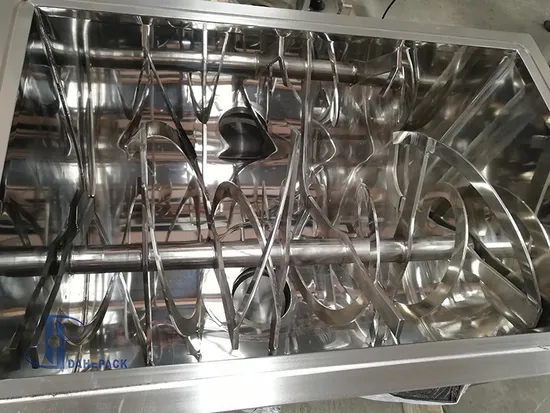

This is a horizontal Ribbon Blender ,designed to mix all kinds of dry powder .It consists of one U-shaped horizontal mixing tank and two groups of mixing ribbon: outer ribbon displace the poweder from the end to the center and inner ribbon move the powder from the center to the ends .This counter-current action results in homogeneous mixing!
Standard Specifications:
Model DH-JD-200 DH-JD-300 DH-JD-500 DH-JD-1000 DH-JD-1500 DH-JD-2000
Full Volume 200L 300L 500L 1000L 1500L 2000L
Turning Speed 46rpm 46rpm 46rpm 46rpm 46rpm 46rpm
Mixing Vessel 3mm 3mm 3mm 4mm 5mm 6mm
Wall Plate 6mm 8mm 8mm 8mm 8mm 12mm
Main Shaft 57*6 76*6 76*8 89*8 102*8 114*10
Mixing Blade 6mm 6mm 6mm 8mm 10mm 12mm
Whole Length 1400 1530 1700 2000 2400 2600
Whole Width 900 1000 1200 1300 1400 1500
Total Height 1450 1550 1700 1960 2050 2200
Total Weight 250KGS 350KGS 500KGS 700KGS 1000KGS 1300KGS
Total Power 4KW 5.5KW 7.5KW 11KW 15KW 22KW
Air Consumption 4-6Bars
Power Supply 3 P AC208-415V 50/60HZ
