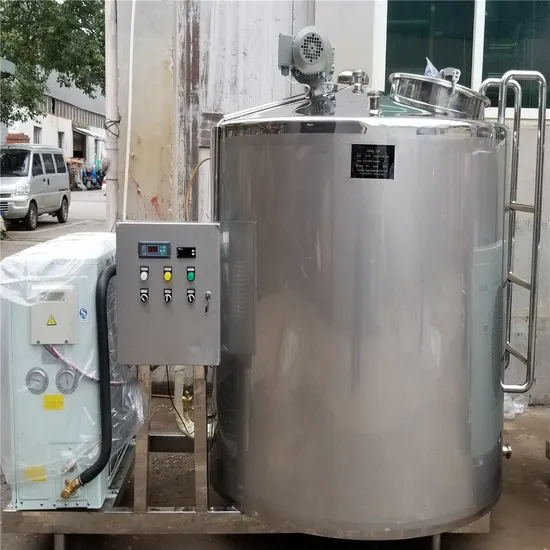

Hot Sale Juice Milk Yogurt Chiller Cooling Storage Holding Tank
| US$1,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KQ
Certification
ISO9001, QS, GS, TUV, GB
Tank Marerial
Metal Tank
Type
Low Temperature Storage & Transportation Equipment
Storage Objects
Liquid
Name
Hot Sale Juice Milk Yogurt Chiller Cooling Storage
Cooling Temperature
4 Celsius Degree
Application
Milk /Dairy Storage and Transportation
Certificate
ISO9001: 2000 & SGS
Speed of Mixer
36rpm
Customize
Yes
Agitator
One Agitator or Two Agitators
Orign
Shanghai China
Motor Brand
Siemens /ABB /China Brand
Packing
Wooden Box
MOQ
1 Set
Working Life
More Than 10 Years
Delivery
15 Days After Get Your Payment
Insulation
Polyurethane Foam 50mm
Vertical / Horizontal
Both
Transport Package
Wooden Box
Specification
Based on special order
Trademark
KQ
Origin
Shanghai China
HS Code
84342000
Production Capacity
1000 Set /Per Year
Product Description
Hot Sale Juice Milk Yogurt Chiller Cooling Storage Holding TankChina Supplier Milk Cooling Storage Tank For Dairy Farm
1. Introduction:
Milk cooling storage tank is mainly used in preserving and storing fresh milk or other fresh liquid. It fully used the international advanced technology, adopts importing European Maneurop (non-fluorine) refrigerator and safety and protection system, imported advanced technique.
So it's the ideal cooling and storage equipment for pasture, milk station, milk factory, food factory, and beverage factory and pharmacy industry.
2. Tank part
Vol: 500L~15000L
Material: SUS304 /316
Isolation material: PU foam
2. Cooling system
Compressor: Maneurop
Refrigerant: R404A or R22
4. CHARACTERISTICS OF CONTROL CABINET:
A. Temperature Meter: Temperature show
B. Refrigerator control system set and the milk temperature adjustment.
C. Adjusts the Agitator for fully mixing up.
D. Function of the panel: Alarm for warning
This system can cooling large area of the inside pot surface, utilizing the automatic computer control system to observe and operate, which can quickly lower the temperature to 4º Cand keep to this constant temperature, that prevent from the growth of the bacteria.
The refrigeration compressor unit are choose the excellent performance and energy-saving European "Maneurop" compressor, equipped with the creditable midpoint protector that will prevent the equipment from burn out caused by over loading or system fault. The heat preservation layer utilized the new technique of the anti-aging polyurethane blister, it owns the brilliant characteristics of heat insulations. The body of the Pot(vessel) make by the high quality stainless steel material 304 (OCr18Ni9)equipped with automatic cleaning ball and mixing system.
| ITEM | Vessel Capacity(L) | Refrigeration power (W) | Rotation speed | Matched power | L× W× H | Refrigerant | Power supply |
| LH-M0.5 | 500 | 5322 | 33r/min | 3KW | 2200× 1350× 1150 | R404A(R22) | 380V/3/50Hz |
| LH-M1 | 1000 | 8842 | 33r/min | 4.5KW | 2200× 1350× 1550 | R404A(R22) | 380V/3/50Hz |
| LH-M1.5 | 1500 | 9214 | 33r/min | 5KW | 2200× 1200× 1750 | R404A(R22) | 380V/3/50Hz |
| LH-M2 | 2000 | 16221 | 33r/min | 6KW | 3300× 1500× 1700 | R404A(R22) | 380V/3/50Hz |
| LH-M2.5 | 2500 | 16221 | 33r/min | 7KW | 3700× 1450× 1500 | R404A(R22) | 380V/3/50Hz |
| LH-M3 | 3000 | 17221 | 33r/min | 7KW | 3950× 1500× 1700 | R404A(R22) | 380V/3/50Hz |
| LH-M4 | 4000 | 21500 | 33r/min | 14kw | 3950× 1900× 1850 | R404A(R22) | 380V/3/50Hz |
| LH-M5 | 5000 | 28442 | 33r/min | 14KW | 4200× 2100× 2000 | R404A(R22) | 380V/3/50Hz |
| LH-M6 | 6000 | 32000 | 33r/min | 14KW | 4200× 2100× 2200 | R404A(R22) | 380V/3/50Hz |
| LH-M8 | 8000 | 41668 | 33r/min | 19KW | 5200× 2200× 2150 | R404A(R22) | 380V/3/50Hz |
| LH-M10 | 10000 | 51360 | 33r/min | 23KW | 6000x2200x2150 | R404A(R22) | 380V/3/50Hz |
| LH-M12 | 12000 | 51360 | 33r/min | 23KW | 6000x2200x2300 | R404A(R22) | 380V/3/50Hz |
| LH-M15 | 15000 | 65200 | 33r/min | 30KW | 7000x2200x2400 | R404A(R22) | 380V/3/50Hz |
Hot Sale Juice Milk Yogurt Chiller Cooling Storage Holding Tank .
