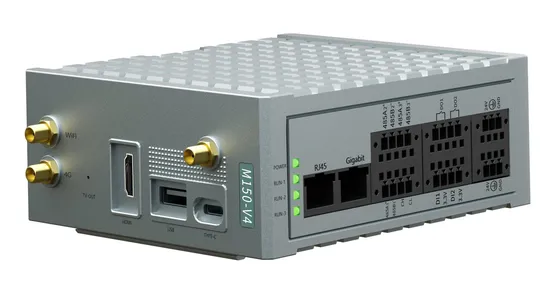

RS485 Edge Computing WiFi Mqtt 4G Multi Function Gateway for Industrial 4.0 Automation Control Scada

Product Description

Product Parameters

Product name	edge computing IIot gateway
Processor	CPU	Quadura core main frequency 1.5GHz
RAM	Memory	LPDDR4 2GB
I/O interface	Storage	8G eMMC support TF card
	USB host	2 channel high speed USB HOST (Type A and Type-C)
	Ethernet	2 channel WLAN port, (10/100/1000Mbps self-adaptive)
	WIFI	IEEE 802.11b/g/n
	4G	LTE Cat1
	Serial interface	1 channel RS232, 3 channel RS485
	CAN bus	1 channel
	HDMI	1 channel HDMI output support 4K 60fps output
PLC		Time storage HYM8563
Electrical	Power supply	DC 10.5V ~28V
	Power protection	Reverse protection, wrong wire protection
	Power consumption	<5W
	Withstand voltage	500VAC (1 min)
	Insulation resistance	over 500Ω (500VDC)
	Anti-vibration	-10~25Hz(X,Y,Z direction 2G /30 min)
Operation environment	Working temperature	-20 ~ 60 ºC
	storage environment	-30 ~ +70ºC
	Environment humidity	10-90%RH (no condensing)
	Cold method	Natural wind cold
Structure	Body shell material	ABS
	Fireproof class	V0
	Dimension	120.55*133*51.5mm
	Installation method	GB C45 din rail
	Protection level	IP20
	Weight	500g
System		Ubuntu20.04lts
Software		WinIF 4.6

Product Description
Company Profile Shenzhen Toprie Electronics Co., Ltd is a high technology enterprise engaged in manufacturing of environmental monitoring and data acquisition field. Established in 2009, which is covering an area of over 3000 square meters, has 6 work lines and many staffs who have good research, design for techniques, quality controlling and production.Business Scope: data logger& paperless recorder, humidity & temperature logger/sensor, gas detector, smart meter pressure sensor, water level meter, liquid level transmitter, data acquisition module (DAS& DAQ), IoT gateway, SCADA, edge computing gateway, RTU, DTU, thermal imaging camera, infrared temp sensor, electric& power& energy meter/power quality analyzer IOT solution etc.And we have the advanced examine equipment, product technique and the perfect quality protect system. Beside our brand name products, we also have more than 16 years' ODM and OEM order experience and can accord the clients demands or requirements to personalized own brand. Sincerity and Down-to-earth working approach' to provide clients with excellent service of processing! We sincerely welcome you to visit our company or contact us for cooperation!
FAQ Q: Are you a factory/manufacturer?A: Yes, We are professional factory/manufacturer of data logger, humidity & temperature logger/sensor, gas detector, pressure sensor, water level meter, liquid level transmitter, data acquisition moduel, IoT gateway, thermal imaging camera, power& energy meter/power quality analyzer etc.Q: Can I customized my logo and different communication methods?A: Yes,For customized logo that will be okay,but there is a small MOQ. For communication methods: GPRS, 4G, WIFI, LORA, LORAWAN etc. Please keep us informed in advance.Q: How long is your lead time? If I want to customize instruments, how long will it take?A: Usually, we can ship out within 3-5 days after receiving your payment. The customize device is depends on your order quantity.Q: What payment method do you accept?A: We accept payment method of T/T (bank transfer), Western Union, PayPal and so on.Q: What package do you use for your products? What shipping method do you use?A: 1. We use standard carton box for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.Q: How is your company's product after-sales service system?A: The product warranty period is 12 months, we can provide lifetime maintenance. And we have professional pre-sales and after-sales engineer teams one-to-one after-sales servicethat can respond to you within 24 hours to resolve technical issues.For more questions, please feel free to send inquiries to us.
