Semiautomatic Blow Moulding Machinery/Water Machine/Plastic Injection Molding Machinery/Plastic Machine/Plastic Bottle Making Machine with CE

Semiautomatic Blow Moulding Machinery/Water Machine/Plastic Injection Molding Machinery/Plastic Machine/Plastic Bottle Making Machine with CE

US$4,250.00 5,000 Sets (MOQ)

Basic Info.

Model NO.
TS-5L
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
After-sales Service
Free Service After Sales
Transport Package
Wooden Case
Trademark
TAISO
Origin
China
HS Code
8477309000
Production Capacity
50sets/Month

Product Description

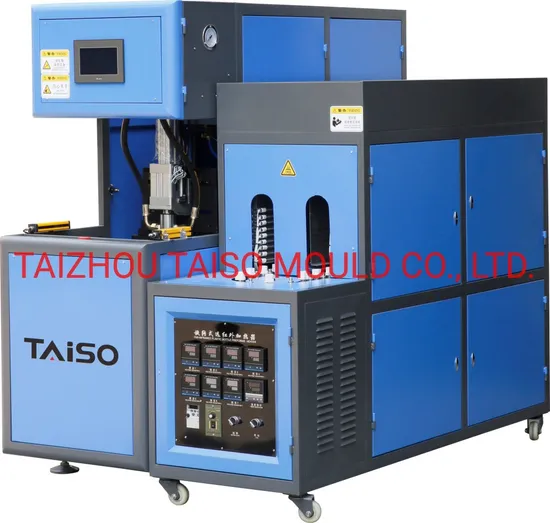

TS-5L Semi-automatic stretch blow moulding machine,designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely.
Features
1. Produce bottle from 2L to 5L bottles
2. Output capacity up to 300 bottles/hour for 5L using one cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.

Model TS-5L
(1 Blower & 1 Heater)
Max. Volume 6L
Output 300-600BPH
Number of Cavities 1 & 2 Cavity
Neck diameter 18-120mm
Max. diameter 180mm
Max. Bottle height 380mm
Mold thickness 100-280mm
Clamping stroke 220mm
Rated power 15kw
Power consumption 4-8kw
Blower size 1900*620*1650mm
Heater size 1700*600*1350mm
Weight 1000kgs
