1 Ton 1.2 Ton Mini Excavator Hydraulic Small Digger Excavators for Sale

Product Description

Product Description

YD Excavator

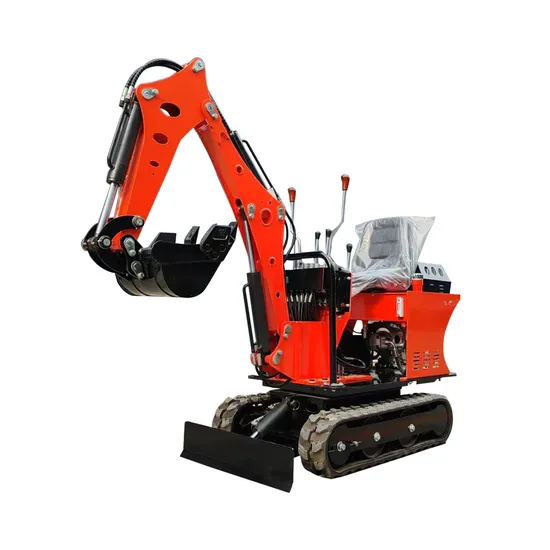

Product Overview The 0.8-ton mini excavator is a compact and powerful machine designed for small-scale construction, landscaping, and agricultural projects. Its lightweight design and excellent maneuverability make it ideal for tight spaces and precision tasks.
Key Features Compact Design: Perfect for confined areas such as gardens, urban construction sites, and small farms. Powerful Engine: Delivers reliable performance for digging, trenching, and material handling. Multi-Functional Attachments: Compatible with a variety of tools, such as buckets, augers, and hammers. User-Friendly Controls: Simplified operation with ergonomic handles and an intuitive interface. Fuel-Efficient: Designed for low fuel consumption to minimize operational costs. Durable Construction: Built with high-quality materials to withstand tough working conditions. Product Parameters

Performance parameters	unit	parameter
Rated Power	KW	8.6
Bucket capacity	m³	0.025
Engine	Koop 192/Koop 192F/Briggs & Stratton
Operating Weight	KG	636
Maximum digging force	KN	7.5
Pump type	Single Pump
working pressure	Mpa	14
Swing speed	Rpm	12
Running speed	Km/h	2.2
Gradeability	°	30
Ground pressure	Kpa	19
Scope of Work
Max. digging reach at ground level	mm	2450
Max. vertical digging depth	mm	1300
Max. digging height	mm	2350
Maximum unloading height	mm	1600
Minimum turning radius	mm	1100
Maximum ground clearance of bulldozer	mm	120
Maximum support depth of bulldozer	mm	200
Outline Dimensions
Overall Dimension (LxWxH)	mm	2430*780*1390
Minimum ground clearance	mm	80
Track ground length	mm	1140
Track width	mm	150

Our Advantages

The attachmens of our excavator:
Detailed Photos
Certifications

FAQ

Q: How long is the machine warranty time? A: One year. Q: Are you original manufacturer? A: Yes. We are manufacturer of construction machines. Q: What is the terms of payment? A: :Normally, we accept 30% advance, 70% should be paid after finished the machine. Q: What is the delivery time ? A: Generally we need 7-15 days to produce the machine after prepayment ,if you are urgent , 5 days will be ok ,then send to port. Q: How should we do if the machine broken ? A: You can take a video to us and our technicians will analyze the cause of the problem based on the video. Q: How should we do if parts are broken ? A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air. Q: Can the machine use the trademark of our own company? A: Yes ,sir ,of course.
