Down Filling Machine for Quilt/Clothes with Weight Scales

Down Filling Machine for Quilt/Clothes with Weight Scales

US$36,000.00 1 set (MOQ)

Basic Info.

Model NO.
DF-1202-X
Type
Weighing-type Filling Machine
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Atmospheric Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Rotary
Packaging
Box
Packaging Material
Metal
Material Type
Down Feather Materil
Transport Package
Wooden Case
Specification
4m*6m
Trademark
Bealead
Origin
Jiangsu
HS Code
8479899990
Production Capacity
20sets/Month

Product Description

Quick DetailsType: Filling Machine
Condition: New
Application: Apparel, Commodity, Textiles
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Pneumatic
Brand Name: Bealead
Weight: 1200kg
Certification: CE Certification
After-sales Service Provided:Local agent could help service and our Engineers are available.

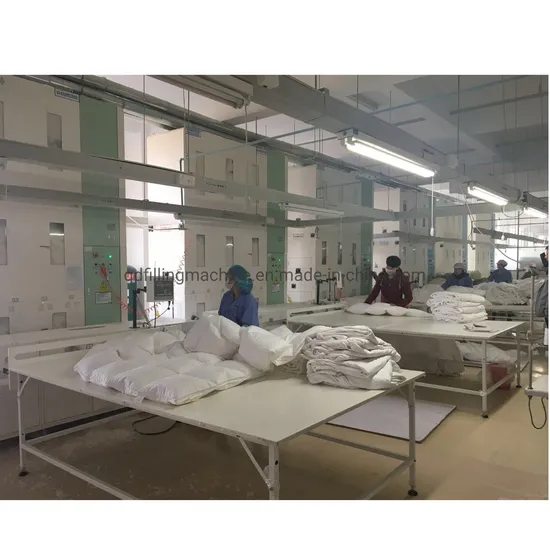

Down Quilt Filling Machine
Item No. 1202B Dimension 2500*850*3500mm
Weighing Ability 1--50g Showing Accuracy 0.1g
Voltage 380V Power 11kw
Air Pressure 0.8Mpa Storage Bin Capacity 25kgs

Description
Specialized for Box/Chamber Duvets/Quilts.
1. Wide measure, the range of weighing can set 1--50 grams.
2 Keep workshop clean, so that prevent the occupational sick and enhances the enterprise apparence, comply with the standard of the Europe and the US clients request.
3. Wide application for different types of down and feather, also could fill Ball Fiber material.
4. Showing accuracy can reach0.1g per filling time.
5. Six weighing scales support double nozzle,dual ports design. It is suitable for small and medium home textile manufactures. Mainly applied in the down quilt filling enterprises which have multi-species but small quantity orders. Using automatic weighing technology instead of original handwork and semi-auto equipment. One person operation to replace the mode of original handwork or semi-auto work; Produce Process
Import Materials
Using motor to import down and feather to storage box.Filling material:duck down, duck feather,goose down,goose feather,milkweed velvet,ball fiber,fake down and etc.
Set up Target Weight
Set up target weight in programm,filling range isg-g,the max filling weight of home textile filling machine is 80g/filling
Start Prepared
Press the button "automatic",filling machine can be ready state automatically
Step the pedal to fill
Put the fabric piece to the filling port and hold it in right way,then step pedal,the target weight down is filled into the fabric piece.filling in this way,it can fill 1800 grids/hour/port
FAQ
Q: Why do you choose us?
A: There are 30 years of experience. We can produce any type you need.
Q: Which payment period is accepted?
A: 30% prepayment + 70% payment is paid before shipment.Welcome your inspection before shipping.
Q: What is the country we export?
A: India, Bangladesh, Vietnam, Vietnam and the Middle East, etc.
Q: How to visit the factory?
A: At your most convenience.
Welcome to visit us!
