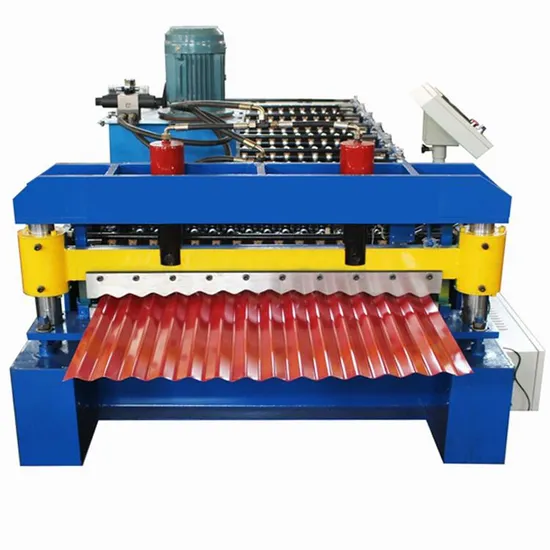

Corrugated Tile Steel Roof Cold Forming Corrugated Roofing Roll Forming Machine

Product Description

Corrugated Tile Steel Roof Cold Forming Corrugated Roofing Roll Forming Machine
1.The main parts: roll forming machine; molding press; cutting machine; PLC computer control;
hydraulic system. 2. The machine is stable, with no noise, no shake. 3. Controlling by computer, PLC display, the operation is easy, running is steady and reliable, endurable. 4. Cutting machine is characterized by stable driving, easy operation. 5. The hydraulic system uses the CDF-10 hydraulic pump, long operating life, no noise. 6. Material: galvanized, colored steel or aluminum coil. 7. We can make and design the kinds of roll forming machines according to customer's requests
2. Work flow and Technique parameters Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking

Suitable Material	Colored or galvanized steel coil, HRB60 or equivalent
Thickness Range	0.3-0.8 mm
Material yield stress	230~550 Mpa
Roller driven type	Chain transmission
Hydraulic system pressure	12 Mpa
Hydraulic station motor power	4 Kw
Main motor power	4~5.5Kw
Total power	7~8.5Kw
Coil Width Range	914, 1000, 1220 or 1250 mm.(According to your actual drawing.)
Electric Power	380V, 50 Hz, 3 phase(or according to your need)
Dimension	About 7.2*1.3*1.4m(L*W*H), as per the drawing
Cutting	Automatically stop and cutting when it comes to the set length.
Length of the Sheet	You can set the length according to your need. It is controlled by Delta PLC length accuracy: ±1mm.
Roller material	45# steel with chrome treatment

3. Specific description (1) Manual decoilerUn-powered, single head, max capacity: 5000kg(2) hydraulic pump stationIt is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank,
the pump drive the cutting machine to begin the cutting job.(3) Computer control cabinetIt adopts TaiDa PLC to control, the target sheet length is adjustable.Computed mode has two modes: Automatic and manual.Touch screen.(4) Output tableIt is used to load the finished sheet. This kind is convenient for shipment.(5) Spare parts 4. Payment term TT, you should pay 30% as the deposit on the order day,
then pay 70% before delivery when you inspect goods well in factory or by video 5. Warranty 12 months, and lifelong technical support service 6. Installation If you need, we will send one technician to your factory to install & testing the machine.
You should assist the technician to get Visa and pay for flight tickets and local accommodation,
and pay 120 USD/day for salary. 7. Packing and shipping details 1. Need one 40ft container.
2. Fit for ocean shipping.
3. The main body of the roll forming machine will be naked packing into the container, covered with plastic film.
4. Steel wire fixes the machine into the container, in case of any damage when shaking on the sea.
5. The spare parts will be packed into the carton box.
6. The received goods table put into a carton box.
7. Manual decoiler naked package.
