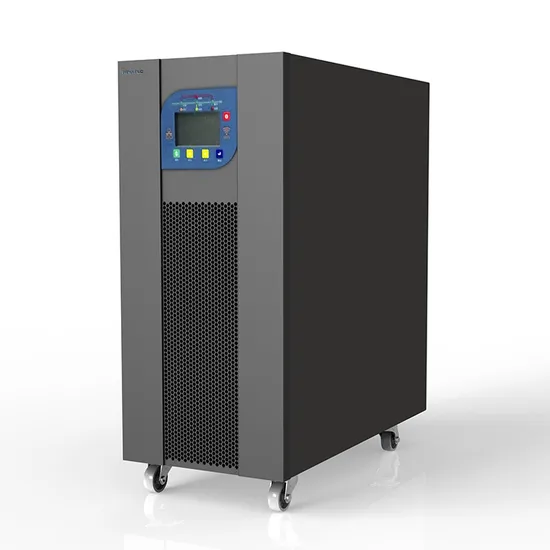

LCD High Frequency Double Conversion Sine Wave Online High Frequency Online UPS Online UPS Uninterruptible Power Supply

Product Description

Product Description
Model: XYH series 300-2400S
Power range: 300k-2400kVA
Working mode: 3P in and 3P out low frequency online, 18 pulse rectification
Product introduction
Three in three output dual conversion online industrial UPS, with capacity ranging from 300kVA to 2400kVA, adopts the sixth generation IGBT power device and static switch, and uses the latest dual core DSP to achieve full digital control; Adopted the industrial high standard design , and the internal electrical connection is made of conductive alloy wrapped with low smoke halogen-free resin, which can withstand 20000 V high voltage, with clear wiring, beautiful structure and good heat dissipation, greatly reducing the volume and weight of the power supply; It has perfect detection and protection functions, and each parameter index basically reaches the first class level of the national standard; The UPS intelligent monitoring can be realized by using a color LCD touch screen with Chinese and English interfaces, configuring RS232, RS485 and other interfaces, and selecting SNMP cards.Performance characteristicsDouble transformation onlineWide voltage range inputDual core DSP full digital controlThe sixth generation IGBT device+advanced SVPWM (space vector modulation) technologyThree phase off regulation, balanced voltage stabilizationAdvanced redundant parallel technology, easy expansionThose with GCI grid connection operation functionPerfect protection functionReliable load capacityIndustrialized design to adapt to harsh electrical environmentFriendly human-computer interface, configured with large Chinese LCD touch screenRich network monitoring interfaces: RS232 RS485 RJ45 dry contact can be equipped with Wi Fi function to intelligently monitor UPS power supply equipment with mobile phone or tablet computer Application area
It is widely used in rail transit, data center, oil field, public security, army, communication, radar station, electric power, industrial site, airport, radio and television, banking, securities, medical system and other industries.
Product Parameters
Technical parameter

Model	XYH300KS	XYH500KS	XYH600KS	XYH800KS		XYH1000KS	XYH2400KS
Capacity(kva)	300kva	500kva	600kva	800kva		1000kva	2400kva
State grid input
Inputvoltage range	400VAC±25%
Input fre. range	50Hz/60Hz±5%
Input power factor	≥0.99
Output
Output voltage and accuracy	400VAC±1%
Output frequency and accuracy	State grid synchronization, 50/60Hz ± 1Hz; Inverter state, 50/60Hz ± 0.1Hz
Voltage phase deviation	120°±1°
Unbalance of parallel load current	≤5%
Voltage unbalance	Balanced load < 1%; 50% unbalanced load < 2%; 100% unbalanced load < 5%
Waveform distortion	Pure sine wave, ≤ 2% under resistive load; ≤ 3% under nonlinear load
Overload capacity	Overload 125% for 10 minutes; Overload 150% for 60 seconds
Current peak ratio	5:1
Bypass
Rated input voltage	380/400/415 (3P+PE)
Voltage range	± 10% ± 15% ± 20% can be set
Frequency range	40-70HZ
Battery
DC voltage	768VDC
Battery type	2V/6V/12V Sealed maintenance free battery
Collocation method	External ,64units/12V
Standby time	The backup time is determined by the battery capacity
System
Switching time	State grid←→ battery: 0 ms; Inverter ←→ bypass: < 2 ms
Degree of protection	IP20(optional)
Power efficiency	≥ 93% (inverter full load), ≥ 97% (ECO mode)
Noise	<66dB(1m)
Environment
Temperature	0ºC~45ºC
Humidity	Relative humidity is 0~95%, non condensing
Altitude	≤4000M
Size
W×L×H(mm)	2100*1000*2000		2100*1100*2000cabinet*2				4200*1100*2000
Weight(kg)	2100	3075	3530	4830	5360		9200
