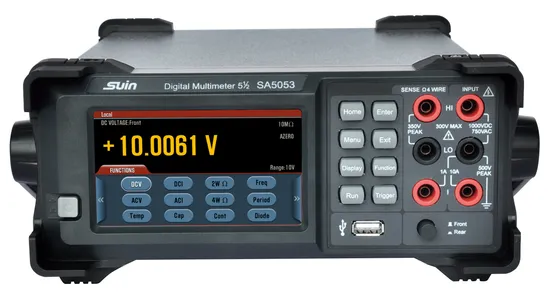

SA5053 Digital Multimeter with Wide Voltage Range

SA5053 Digital Multimeter with Wide Voltage Range

Negotiable 1 SET (MOQ)

Basic Info.

Model NO.
SA5053
Display Mode
Digital
Power Source
AC
Range Conversion Type
AUTO/MAN RANGZ
Display
LCD
Interface
USB RS-232 LAN Gpib(Optional)
OEM/ODM
Yes
Resolution
1UV
Transport Package
Carton Package
Specification
260 * 106 *375 mm, 2.6kg
Trademark
SUIN
Origin
China
HS Code
9031809090
Production Capacity
30, 000 Sets/Year

Product Description

Features
True 5 1/2 digits
1 μV resolution
Full measurement functions to meet user's test need
Double display voltage and frequency synchronously
4.3 inch LCD capacitive touch screen to display bar chart, histogram and trend chart
Product Overview
Specifications
Basic FunctionRangeBest Accuracy
± (% reading + % range)
DC Voltage100mV/1V/10V/100V/1000V± (0.012 +0.005)
AC Voltage100mV/1V/10V/100V/750V± (0.2 + 0.1)
DC Current100µA/1mA/10mA/100mA/1A/10A± (0.05+0.007)
AC Current100µA/1mA/10mA/100mA/1A/10A± (0.5+0.1)
Resistance100Ω/1KΩ/10KΩ/100KΩ/± (0.03+0.005)
1MΩ/10MΩ/100MΩ
Capacitance1nF/ 10nF/ 100nF/1µF/10µF/100µF± (0.2+0.5)
Frequency5Hz-1MHz± 0.02
Temperature- 200ºC~ 800ºC± 0.2ºC(without accuracy of probe)
Features
Reading Rate500 reading/s
Auto Range
Diode
Continuity
Trigger
Save/Read
MathMAX/MIN,Rel,dB, dBm,Limit,Statistic
General Characteristics
SafetyIEC61010-1: 2001, 1000V600V, Class of pollution: 2
InterfaceUSB Host, USB Device,RS-232,LAN, GBIP (optional)
Power115 V/230 V (1±10%), 50 Hz/60 Hz, 15 VA
Dimension & Weight256х106х322 mm, 3.5 kg

Warranty
For the technical and material's defects of the products that Shijiazhuang Suin Instruments'Co., Ltd produced and sold, we promise one year warranty since the shipment day. Duringb the warranty, to the defective products which is proved, we will regroup or replace this defective ones based on the detailed provisions of the warranty.
Company ProfileShijiazhuang SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc. It already won below titles depending on the super technical advantage: High-tech Enterprises in Hebei Province, Hebei Industrial Design Center, Hebei Academician Workstation, Shijiazhuang Industrial Design Center, Engineering Research Center of Shijiazhuang electrical test instrument, Shijiazhuang Enterprise Technical Center, China's Key Enterprises in electronics instruments industry.
