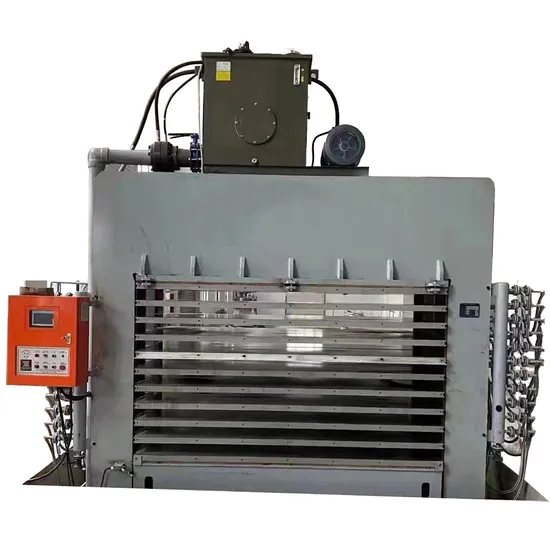

Melamine Laminating Press Machine/30 Layers Hot Press Machine for Base Plywood

Product Description

Melamine Laminating Press Machine/30 Layers Hot press machine for base plywood /veneer lamination hot press machine with CE ISO
Product Parameters

No.of layers	8,12,15,18layers or as your requirements	8,12,15,18layers or as your requirements	8,12,15,18layers or as your requirements
Nominal pressure	400Ton	500Ton	600Ton or according to NO.of layers
No.of cylinders	2 pcs	2 pcs	2 pcs
Diameter of cylinders	320mm(alloyed material)	360mm(alloyed material)	400mm(alloyed material)or according to NO. of lays and pressure
Stroke of cylinders	1050mm	1050mm	1050mm
Origin of cylinder	Wuxi.China	Wuxi.China	Wuxi.China
Hydraulic system	Full-automatic controlled	Full-automatic controlled	Full-automatic controlled
The pressure of hydraulic system	25Mpa	25Mpa	25Mpa
The flow of the main oil pump	250ml/rev	260ml/rev	270ml/rev or according to pressure
Pressor oil pump	10ml/rev plunger oil pump	10ml/rev plunger oil pump	10ml/rev plunger oil pump
Main generator	11KW	11KW	11KW
Pressor generator	5.5KW	5.5KW	5.5KW
Time of no-load closing	About 27seconds	About 27seconds	About 27seconds
General dimensions	3560*1370*4000m	3560*1370*4000m	3560*1370*4000m
Height of top crossbeam	800mm	800mm	800mm
Height of nether crossbeam	800m	800mm	800mm
Thickness of steel board	35mm	40mm	45mm or according to NO.of layers and pressure
Dimension of active	2700*1370*400mm	2700*1370*400mm	2700*1370*400mm
Thickness of steel board inactive crossbeam	22mm	22mm	22mm

Features:
• Strong and durable construction:
The machine is built with heavy-duty materials and components, such as steel frames, hydraulic cylinders, and electric motors, to withstand the high pressure and temperature requirements of plywood manufacturing.
• Precise control system:
The machine is equipped with a computerized control system that allows for accurate and consistent temperature, pressure, and timing settings. This ensures that the plywood sheets produced are of uniform quality and meet the required specifications.
• Easy operation:
The machine is designed to be user-friendly, with intuitive controls and clear instructions. Operators can easily adjust the settings and monitor the production process through the control panel or a remote device.
• Customizable options:
The machine can be customized to meet specific production requirements, such as the number of plies, the thickness of the veneer, the size of the sheets, and the type of glue used.
• Energy-efficient:
The machine is designed to minimize energy consumption and reduce waste, with features such as automatic shut-off, heat recovery systems, and energy-efficient motors.
Applications:
The plywood hot press machine is ideal for various applications, including:
• Manufacturing of plywood sheets for furniture, flooring, wall panels, and decorative items.
• Production of laminated veneer lumber (LVL) for structural applications, such as beams, joists, and columns.
• Processing of composite materials, such as particleboard, MDF, and OSB.
• Custom manufacturing of plywood sheets for special projects or customer orders.
Detailed Photos

Product Description
Hot platen:
1. it is drilled from excellent carbon solid steel and it is high precision, high strength and durable.
2. it is manufactured on special workable., so as to keep the hot platen easy to operate.
Heating system
1. It can be heated by a steam boiler, oil heater, or electric oil heater.
2. We recommend oil type of boiler as the temp can be more stable.
Cylinder:
1. it is made in wuxi from excellent carbon solid steel and it is high strength and durable.
2. It uses high-quality oil envelop so as to avoid of oil leaking.
Control system
1. Plc control
2. It can lift the hot platen, close the separation, add the pressure, keep the pressure, keep time, descend the hot platen and so on.
