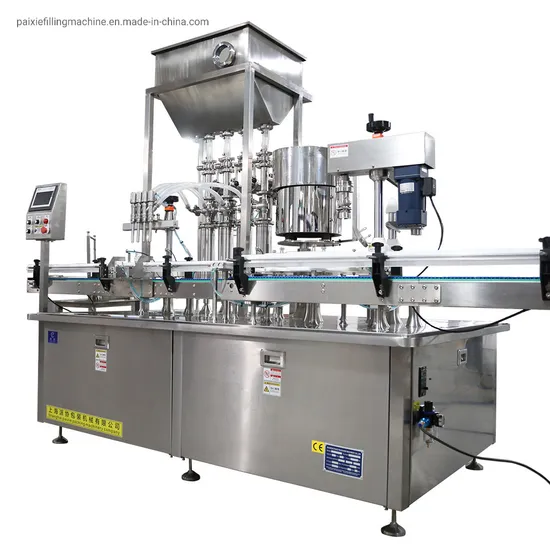

Automatic Kitchen Condiment Edible Vinegar, Liquid Soy Sauce Filling Machine

Product Description

Product Description
1. The equipment rack adopts closed structure, which is safe to operate and sanitary to use.
2. The high precision piston metering device of granular sauce filling machine is driven by servo motor, which is accurate and reliable;
3. It is made of SUS304 stainless steel, which meets the requirements of food production.
4. The automatic hot sauce filling machine adopts high-quality sealing elements and effective anti dripping measures to ensure no dripping on the filling site;
5. The equipment has its own material storage box, which can clean the pipeline independently, and it is convenient for cleaning and refueling.
6. The filling head is equipped with a photoelectric system, which can accurately identify the positioning status of filling bottles, and realize filling with bottles, filling without bottles and no filling with few bottles.
Real machine factory scene

Product Parameters

Model	PX-BFC80
Yield(pcs/min)	20-60 BPM (customized)
Filling heads	1-4 (customized)
Filling pump	Piston pump
Work voltage	110/220/380V 50/60HZ
Air presstion	0.6MPA
Accuracy	±0.5%
Power	1-3.5KW
Driving	Servo motor
Direction	Left -rigth /right-left
Pump volume	100-1000ml
United size	1200*900*2000mm
Weight	500kg
Material	Contacting parts SS304 with Hairline Finish
HMI	7.5" Color Touch Screen Control
Protection	Comprehensive Safety Alarm System
Speed controller	Variable Speed Controls
Detecting system	Vial Detector & Counter

Real details

Piston pump filling station drived by servo which is contributed to precision and speed control
Filling system
High Pressure Endure SS Hose and Sanization Filling Head 1.Food grade 304ss hose2.Shut off filling heads3.With drop collection tray4.High filling accuracy5.Diving Nozzles are optional for bubble sauce,like honey6.304SS Food contruction,no dead corner
7.High quality and food grad O rings and seals inside of the nozzles
Capping machine
This automatic capping machine can automatically finish feeding caps and screw tightening the caps tighten on bottles' mouth. Itadopts elevator to feed caps in one line, it is a high cost performance machine. It is suitable for various threaded bottles and caps.

WHY people like PAIXIE ?

You may be warrying those ?
1- How can i fill so many formats my bottles with the machine perfectly withour complex adjusment ?
2- How can i understand your quality ?I do not want any kinds bad machine which failed to live up to my investment .
3- How can i know your machine life ? It looks always beautiful but only in your room .
4- How can i install such a big long machine by myself ? It looks never eaasy at all .
5- How can i recognize the real difference in chinese market ? So many suppliers quoted me every day !!!
6- What can i do if machines get broken in broken ? Who is gona to help me ?
To look how PAIXIE boys do
Compared with tradtional machinery , PAIXIE smart filler has below characters which are benefited to each customer operation experience :
1- With servo driving , operator just edit the filling parameter on HMI to realize all kinds products packing .
2- 150mm width SS304 protection frame which equied with induction switch is able to stop machine whenever operator open the plexiglass door which is good for human protection .
3- PAIXIE'S machines are all equiped with scale rules for diffeferent kinds bottle replacing , which is convenient for date recording and save the time in adjusting .
4- All PAIXIE'S machine are made of SS304+SS316 which avoiding pollution perfectly , protect custoomer's product quality .
5- Machines are deliveried as whole which solving the stress of after sell installation for customer . PAIXIE'S technicians are standing by all time for on-site service .
