Custom Plastic Injection Blow Mold for Roll on Multi Cavity for Eye
| US$5,000.00-20,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
roll on bottle mold
Product Material
Iron
Process Combination Type
Single-Process Mode
Method for Making Preforms
Injection Blowing
Extrusion Blow Molding Mould Application Type
Machinery Manufacturing
Function
High Quality
Certification
ISO, CE, RoHS
Warranty
12 Months
Customized
Customized
Condition
New
Bottle Sizes
1.5ml-2000ml
Cavity Numbers
Depend on Bottle Sizes
Bottle Max. Height
240mm
Bottle Max.Dia
100mm
Dropper Normal Size
5ml 10ml 15ml 30ml 60ml 100ml
Transport Package
Sea Worth Standard Packages
Specification
2packages
Trademark
FD
Origin
Jiangsu, China
HS Code
8480790090
Production Capacity
50sets/Month
Product Description

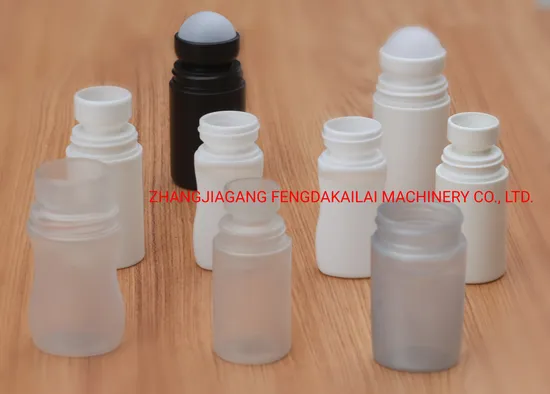

injection blow mold for roll on bottle Detailed PhotosAbout us
1) More than 15 years experience in Mould making area
2) Best service supplied with Good quality products,fast delivery time with experienced working team
References of cavity details on each machine models
| Approx. Volume (ml) | Max.body diameter (mm) | Mini.neck diameter (mm) | Max.height (mm) | Mini.weight(g) | Max.cavity FD30S | Max.cavity FD50S | Max.cavity FD70S |
| 10 | 24 | 7 | 60 | 2 | 10 | 13 | 18 |
| 30 | 30 | 8 | 75 | 4 | 8 | 11 | 16 |
| 60 | 45 | 14 | 90 | 7 | 6 | 8 | 11 |
| 80 | 50 | 15 | 100 | 9 | 5 | 7 | 10 |
| 120 | 60 | 18 | 120 | 14 | 4 | 6 | 8 |
| 250 | 65 | 20 | 150 | 25 | 3 | 4 | 6 |
| 500 | 85 | 25 | 220 | 35 | 2 | 3 | 4 |
| 1000 | 95 | 40 | 240 | 60 | 1 | 2 | 3 |
Mold specifications
| NO. | items | remarks |
| 1 | Injection die body | Stainless iron 4Cr13(HRC45-48) |
| 2 | Blow die body | Stainless iron 4Cr13(HRC45-48) |
| 3 | Neck insert | Stainless iron 4Cr13(HRC50) |
| 4 | Core rod Titanium Coating | 4Cr13(HRC50)with coating |
| 5 | Adapter board | 45steel and did electroplating |
| 6 | Mold plate | 45steel and did electroplating |
| 7 | Bottom insert | 4cr13 |
| 8 | nozzle | Brass yellow metal |
| 9 | Hot runner plate | 4cr13 |
| 10 | baffle | 45steel and did electroplating |
| 11 | Nozzle platen | 4cr13 |
| 12 | Material feeding seat | 45steel |
| 13 | Core rod holder | Aluminum 6061 |
| 14 | Stripping plate | Aluminum 6061 |
| 15 | Oil pipe | PTFE |
MOULD FEATURES
1) Core, Cavity and Neck can be interchanged
2) Excellent hot runner system and cooling system
3) High quality materials and proven mold design ensure long life time
4) Pneumatic Pin Valve strcuture without manual cut tail, reduce the labor force
5) Double self-lock structure ensures mold thickness tolerance less than 0.1mm
6)core rods coating for long life use and good for products making.
Product Description servo system save 30% power. PLC computer controls Hot runner injection blow mold with horizontal three positions for continued production with no any wastage Easy to install injection blow mold. Top branded electric parts and hydraulic parts for long service life Bottle volume:1.5ml to 1000ml Materials available:HDPE/LDPE/LLDPE/PP/PS... Mold size:440×260 or 600×330 or 780×330.... Mold packed weight(G.W.):260kg/600kgs/960kgs
Processing steps
| Mold Manufacturing Procedures |
| 1. customer supplied bottle samples or specifications for our designer making drawings |
| 2. customer check and signed the drawing if no any doubts |
| 3. order confirmed with advance payment |
| 4. Mold designs and tooling works |
| 5. as per scheduled taken trial of mold and measuring all specifications against signed drawings |
| 6. customer received samples and check everything,then give feedback |
| 7. we will do modifications if required or else will do final works after get customer approvement |
| 8. mold delivery against balance payment |
| 9. supplied mold install guidance or if required by customer can visit customer end for trials |
| 10. giving online service forever |
