Customized Steel Belt Width Customized Cooling Zone Double Belt Cooler

Product Description

Company introduction:
Shanghai Jingtao Steel Belt Technology Co. Ltd. is a manufacturer that integrates design, R&D, production, sales and service, specializing in steel belt cooling solidification equipment producing granules and flakes for melt materials , having a professional creative technical team with over 20 years experience.
Due to the rapid development of the market and customers, in 2017, Jingtao bought a land to construct new modern factory in Huzhou, Zhejiang. Jingtao strictly follows the ISO9001 quality management system. In 2019, a new modern plant was put into use, which can meet the annual production capacity of 100 units , and was also equipped the latest production equipment ,production line, machine center, cutting center ,welding center and technical test center. Jingtao has established the strategic partnership with China Science Academy . As high-tech enterprise, Shanghai Jingtao has become one of renowned steel belt cooling solidification equipment manufacturer with high quality product, cutting-edge technology, user-friendly design and professional service, as well as cooperation experience with world top 500 companies at home and abroad. Jingtao has been rated as the most developmental enterprise by Forbes.
Jingtao products mainly include steel belt pastillator, double belt coolers, single belt coolers, high quality steel belt, double steel belt press, drum vulcanizer,single steel belt electronic diaphragm machine etc, widely used in various fields such as resin, daily chemical , fine chemical, electronic , pharmaceutical intermediates, food, casting film, wood, rubber, plastic and new material industries. Through near 20 years continuous creation of products, Jingtao equipment in the resin industry ranks first; Jingtao double steel belt coolers occupies 76% of the domestic market ; Jingtao new fourth-generation steel belt pastillator technology is also leading the industry's new technical development and environmental protection new standard.
1.Double belt coolers working principle
Molten material melt by reactors is fed into double belt cooler's head through the material pump at a constant speed and pressure, overflows continuously and evenly onto surface between two steel belts and forms premium sheet by melt solidification. Finally the sheet will be crushed as the flakes by crusher and entered to metering and packing process. Built-in interlock switch and emergency brake system ensure operation safety. Cooling water won't contact with material in the cooler system. The uncontaminated cooling water can be recycled or discharged without pollution to the environment.
2.Double belt coolers diagram
3.Double belt coolers features
Flake shape versatile and customized Stable and high productivity plus compact size Suitable for high and low viscosity material and adaptable to wide range of temperature Smooth liquidity and even liquid pressure to assure the consistent shape and size Accurate cooling design and cooling space with steel belt superior heat transmission to ensure efficient melt solidification Long lifetime of steel belt and equipment Convenient installation, dismantlement and maintenance Environment friendly, dustproof and rotproof,anti -corrosive effect Low cost consumption 4. Why Jingtao
There are many double belt coolers in the market, why Jingtao can win so many high end customers since establishment? Jingtao double belt coolers are positioned in high quality level and correspondingly match customers who need high quality flakes. Some of customers who have bought cheap equipment in the market and have many complaints after using then consult back to Jingtao to purchase it to keep their production line stable and high productivity.

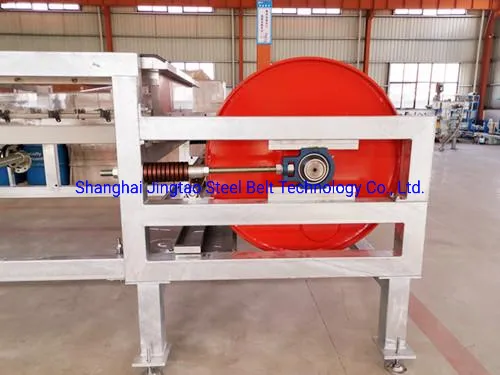

So what special advantages does Jingtao have? Jingtao purchase qualified raw material and don't compromise on raw material. To make the equipment stable, safe and durable, Jingtao creates special elaborate technique with accurate design, which is different from competitors and hard to imitate by them. Cooling zone-Tension end Jingtao tension end adopt disc spring, offering the suitable stretch automatically to ensure the long lifetime of steel belt and correct the deviation of the steel belt.
Others adapt spiral spring or even without any spring, no enough tension to the steel belt, cause to steel belt break, affecting the lifetime of steel belt. Cooling zone -Support assembly Jingtao support assembly :
Upper belt support assembly as herringbone shape using high wear-resistant electric board to support the steel belt steadily
and scrape down the water quickly by rapid heat exchange.
Lower belt
Roller with 4 points of support instead of a whole. The built-in maintenance-free bearing ensures a longer lifetime.
Others upper belt support adopt normal phenolic board, it can soften in the water and can't scrape the water well.
Lower belt support makes the roller as a whole without separate section, causing the distortion of steel belt and finally affect the lifetime of steel belt.
Cooling zone-spray assembly Jingtao: Water pipe with semicircular stainless
sprayed in a solid cone on the back of the steel belt, taking away the heat from the belt.
Design(1.5m steel belt widith): every 2.5m with 4 rows water pipe and each row is 7 pcs nozzle, 5m cooling section 56pcs,4 rows large nozzle accurate layout and angle sprayed;Large diameter nozzle -significant cooling effect;Quick release design -easy cleaning and replacement.
Others makes the solid cone water form a cross collision before they are sprayed on the steel belt, causing the water falling in the middle, so the cooling and heat exchange efficiency is low.
Cooling zone-water collection and drainage Jingtao water collection and drainage: all parts contacting with water adopt 304 stainless steel, with maintenance free, waterproof and rustproof. Jingtao drainage design detailly to avoid water leakage and make water drain smoothly. All parts contact with water, we use 304 stainless steel. We make water collecting plate with slope design to ensure water to drain tank with high pressure, which can quickly discharge the water.
Others: To save cost, not all parts adopt 304 stainless steel, causing to leakage of water and no rust proof. And the water is blocked inside and cant's drain very quickly.
FAQ:
1. How long is your delivery time?
Normally 3-4months and if some order is urgent, we will speed up two and a half months
2. Which brand of your steel belt?
Jingtao steel belt adopts Nippon Yakin Japan brand.
3. Does you a factory directly?
Yes, Jingtao manufactures for more than 20 years and self-construst a new factory in Huzhou ,zhejiang in 2019. Before 2019, which is two and a half driving from Shanghai. our old factory is based on Shanghai before 2019. Now Shanghai is our markinging headquarters.
4.Do you have aftersales service in my country?
In southeast Asia, we have local aftersales service team. And for other country, we arrange after sales team from China directly.
5. Which material does your equipment make granules and how?
Normally it need molten material that is from liquid to solid. And our equipment uses steel belt as a conveyor and water spray as cooling. It has pastillator head, steel belt cooling zone, discharge section, safety section, wheel drum, support section etc.
