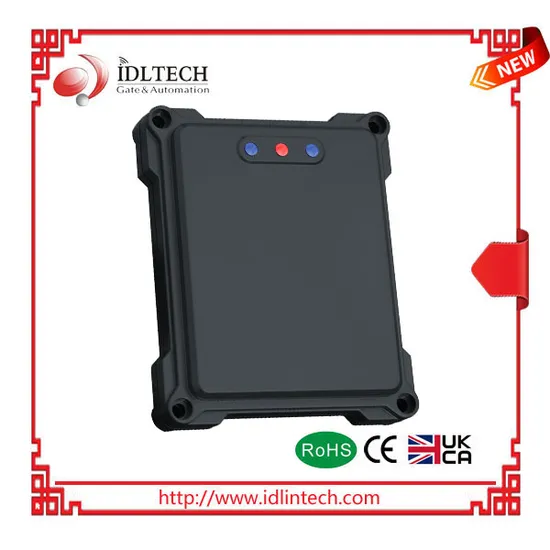

Car Parking System Gate Barrier Wireless Radar Vehicle Detector Replace Loop Detector

Product Description

1. Technical Parameter
1) Input Voltage: DC12V 150mA
2) Working Frequency: 24-24.5GHz
3) Modulation Mode: FMCW
4) Sending Power: 10-15dBm
5) Angle between the Beam and Pole: Wide wave <15°, Narrow wave <12°
6) Detection Distance: 1 - 6 meters, ±0.2 meters
7) Communication Method: RS485, Baud Rate 115200
8) Working Temperature: -40ºC~+85ºC
9) Protection Level: IP67
10) Dimension(L*W*H): 131mm*106mm*28.5mm
2. Are you still troubled to install loop detector and loops?
1) Cutting ground-Waste time and not good looking;
2) Complex wiring-Messy and Difficult;
3) Mud road-Cannot fix the loop;
4) Cannot detect big truck, trailer or other vehicles with high-bed.

3. Why choose barrier radar detector?
1) Can replace loop detector completely; no wiring layout, save time and cost.
2) Easy installation; Easy parameters setting; Adjustable distance from 1 to 6m.
3) Work in range of 24-24.5Ghz without effects from any climatic environment.
4) Can effectively distinguish vehicles and humans to avoid any hitting.
5) Can be used for trigger detection, e.g. trigger camera to capture the picture.
6) Can be used to trigger the alarm in the warning zone.
7) Can record the traffic and no data is lost when power is off.

4. Radar Detector Installation
1) The trigger radar and the anti-smash radar should be installed perpendicular to the lane's direction. The anti-smash radar is installed on the cabinet below the barrier pole. The trigger radar is installed on the special bracket for the radar installation. The optimal height from the ground to the radar center is 0.6 meters.
2) The barrier's cabinet must be fixed firmly to avoid shaking when the barrier is working.
3) Within the detection area, there should be no obstacles other than the barrier pole, e.g. traffic cones, isolation bars, signs, etc..
4) Please update the radar background in time after the environment in the detecting area is changed.

5. Wiring Definition

Color	Definition
Red	Power Input +12VDC
Black	Power Input GND
Blue	Relay Output COM
Green	Relay Output NC
Purple	Function Switch Input
Brown	Function Switch Input Ground
White	Relay Output COM
Yellow	Relay Output NO

6. Vehicle Radar Detector RoSH, CE and UKCA Certificate
7. More Applications for barrier radar detectors
