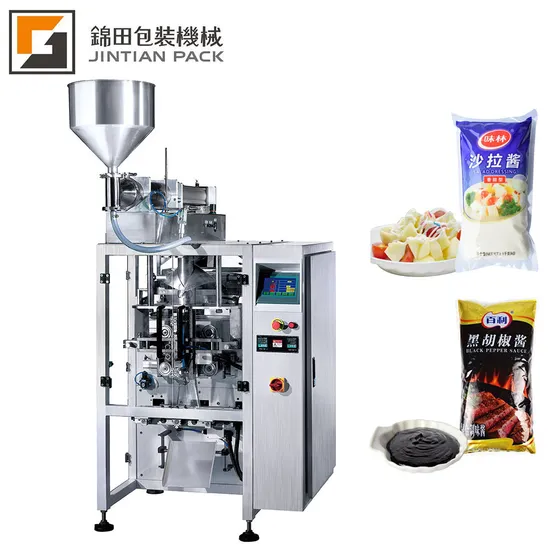

Automatic Vertical 100-1200 Ml Juice Milk Water Tomato Sauce Jam Paste Packing Machine

Automatic Vertical 100-1200 Ml Juice Milk Water Tomato Sauce Jam Paste Packing Machine

US$10,000.00-13,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JT-420L
Material Type
Liquid
Filling Valve Head
Single-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Pump
Filling Principle
Atmospheric Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Rotary
Packaging
Bag
Packaging Material
Plastic
Weighing Arrange
100ml-1000ml
Machine Material
Stainless Steel or Mild Steel
Types of Seals
Back Sealing
Color
Grey
Max Film Width
420mm
Transport Package
Wooden Cases
Specification
CE
Trademark
JINTIAN
Origin
China
HS Code
8422000
Production Capacity
500 Sets Per Year

Product Description

Product Description Packaging machine host 420
Liquid pump Product Parameters
Model JT-420L
Bag length 50-300mm(L)
Bag width 50-200mm(W)
Max. width of roll film 420mm
Packing speed 5-65bags/min
Measuring range 150-1200ml
Air consumption 0.65mpa
Gas consumption 0.3m³/min
Power voltage 220VAC/50Hz
Power 2.2KW
Dimension 1080(L) ×1300(W) ×1400(H)mm
Weight 600Kg

Features:
1. English and Chinese screen display, operation is simple.
2. PLC computer system, function is more stable, adjustment any parameters not need stop machine.
3. It can stock ten dispose, simple to change variety.
4. Sever motor drawing film, position accurately.
5. Temperature independent control system, precision get to 1 centigrade.
6. Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
7. Packing type diversification, pillow sealing, standing type, punching etc.
8. Bag-making, sealing, packing, print date in one operation.
9. Work circumstance quiet, low noise.
Company Profile
FOSHAN JINTIAN PACKING MACHINERY CO.,LTD., established in 2011, is specialized in researching, designing, manufacturing and marketing packaging machines which are widely used in different fields such as foods, chemicals, pharmacies, beverage, light industry and etc.
JINTIAN series of vertical packaging machines are sold to more than 40 different countries and regions in Europe, America, Mid-East, South Asia and etc. With high quality machines and quick professional service, JINTIAN win a consistently high reputation.
After Sales Service FAQ
Want to know more,welcome to contact us!
