260m Diamond Core Drill Geological Survey Borehole Drilling Machine (HT-260)

Product Description

Product Description HT-260 drilling rig is a new type of shallow hole core drilling rig with mechanical transmission system and hydraulic pressure feeding system. It is mainly manufactured for engineering geological exploration, small-scale water well drilling and engineering construction for highway, railroad, hydropower, harbor, etc. It is also applicable to shallow hole alloy core drilling and diamond core drilling.

Product Features 1. Diesel engine or electric motor is available to satisfy various engine demands.
2. Diesel engine with electric start, reduce labor intensity;
3. Higher reliability and intensity as well as stronger capacity compared with similar drill rigs in China.
4. Connecting rod reinforcement spring clamp and hydraulic chuck enjoy novel structure, large clamping force, long service life and reliable performance.
5. Six rotational speeds meet demands of a wide range of applications.
6. Six reverse rotational speeds can realize automatic rod unloading, helping to tackle drilling accidents with lower labor intensity and higher safety.
7. Components of this core drilling rig are almost identical and interchangeable, facilitating replacement and maintenance.
8. Easy to fix the core drill, and stable under high-speed drilling.
9. Light weight and easy to assemble and disassemble. This drill rig can be disassembled into 4 integral parts, allowing convenient transportation and drilling working in mountainous areas and underground tunnels.

Product Parameters

HT-260 Drilling Rig Parameter
Drilling Capacity	Drilling rod Dia.	Drilling depth (Reference)
	φ42mm	320m
	φ50mm	260m
Engine	Name	Diesel engine	Electric machinery
	Model	L28	Y160L-4-B3
	Rated power	20kW	15kW
	Rated speed	2200r/min	1460r/min
Swivel Head	Spindle speed (r/min)	Clockwise: 68,156,252,384,583,888 Contrarotate: 39,90,145,221,335,511
	Spindle Dia.	φ65mm (φ59×53 hexagon drilling rod)
	Max. Torque	1750N.m
Feed Mechanism	Model	Double oil cylinder hydraulic feed
	Max. Hoisting capacity	Rated 60kN
	Max. Feed force	Rated 45kN
	Feed stroke	500mm
Winch	Model	Planetary
	Single-rope 3 layer Max.hoist capacity	22kN
	Single-rope 3 layer Max.hoist speed	0.606;2.2;3.35 (m/s)
	Winch Dia.	φ160mm
	Steel calbe Dia.	φ12mm
	Rope capacity	30m
Hydraulic System	Oil model	CBF-F418-ALP
	Oil pump displacement	18ml/r
	Rated working pressure	12MPa
	Rated speed	1500r/min
Remove oil cylinder stroke	360mm
Drilling angle	0-360°
Dimensions (L×W×H)	1630×800×1530 mm
Weight (exclude engine)	710kg

Related Photos

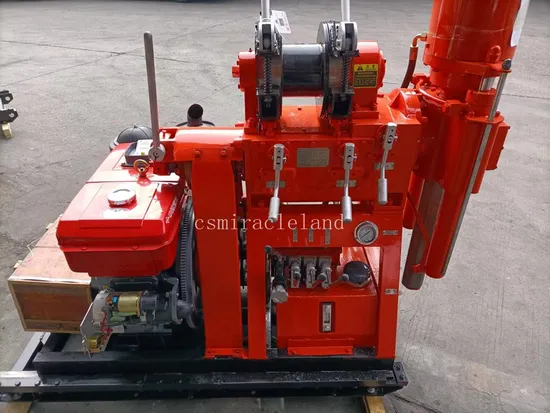

Diesel engine with electric start, reduce labor intensity.
