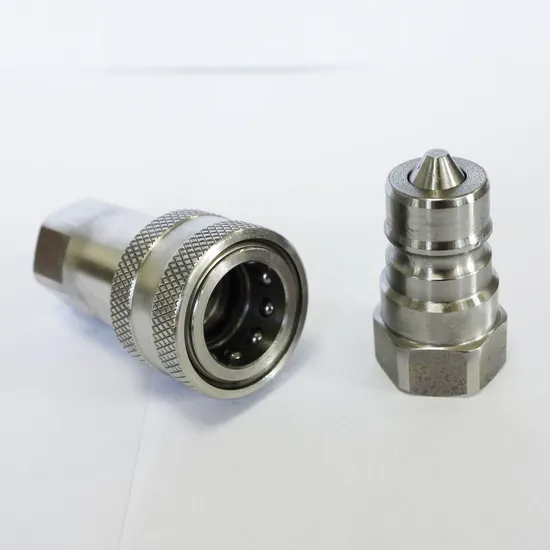

Naiwo ISO-a Quick Connector Hydraulic Quick Coupling Nipple Stainless Steel Quick Coupler

Product Description

NWA Series quick coupling (stianless steel)
Product Feature Meet the standard ISO 7241-A Corrosion resistance for bad environment Standard material:corrosion resistance stainless steel 304/316 Standard seal:nitrile rubber,fluoride rubber

Seal elastomer data
Seal	Maximum working temperature range
Nitrile rubber	-20ºC to +100ºC
Fluoride rubber	-25ºC to +150ºC

Product Parameter

Size (in)	ISO (mm)	Max Working Pressure (bar)	Rated Flow (l/m)	Min Blast Pressure (bar)	Fluid Loss (ml-cc)
		connection		connection
1/4	6.3	315	12	1450	0.5
3/8	10	315	23	1590	1.9
1/2	12.5	250	45	1240	2.7
3/4	20	250	106	1100	8.2
1	25	250	189	1000	14.2

Application Range Hydraulic & fluid delivery Agriculture machine
Building equipment
Steel rolling machine
Factory manufacturing & processing
Garbage truck,snow clearer truck and maintenance truck
Interchangeability FASTER ANV series
STUFF H-1500 series
PARKER 6600 series
AEROQUIP FD56 series(5600 series)

Photo Details



Hebei Naiwo Fluid Technology Co. Ltd is located in matou economic development zone of hebei province, China. We are specialized in production of NAIWO brand quick coupling(ISO16028, ISO7241-A, ISO7241-B) with stainless steel, carbon steel and brass material. The quick coupling can be widely used for metallurgy, oil, chemical, food, shipbuilding, agriculture machine, construction machine, special car/truck, paper making, drilling platform and other fields. We take the "leading technology, excellent quality, perfect service" as the company culture and management concept, focus on strict production procedures and related testing equipment, which help our factory win the clients′ praise and trust all over the world.
