Cryogenic Chg Cylinders CNG Type 3 Chg Gas Cylinder for Gnc Gnv Car

Product Description

Product Description
Auyan is committed to the application of natural gas and hydrogen-related clean energy. Business scope covers the manufacturing of low-temperature equipment and intelligent gas supply for new energy vehicles.

Hydrogen cylinders' application around the world:
Numerous hydrogen storage systems fitted with hydrogen cylinders and H2 valves are operating in the market. For instance, the bus hydrogen cylinder is operating throughout Europe as part of the Clean Urban Transport for Europe (CUTE) project. H2 cylinders were also used on hydrogen-powered commuter buses, also include the automobile section, more and more world-class automobile manufacturers have applied the hydrogen cylinder to the car or bus projects.

AUYAN hydrogen cylinder is the ideal solution for applications requiring fill pressure are used for:
1. Fuel-cell vehicles.
2. Resupplying stationary hydrogen refueling stations.
3. Refueling remote hydrogen fuel-cell applications and sites.
The hydrogen fuel cell is a device that directly converts the chemical energy of hydrogen into electrical energy. It has the advantages of high efficiency, environmental protection, lightweight, and low noise, and has become an important direction for the development of new energy vehicles. High-pressure container hydrogen storage has become the main onboard hydrogen storage method for hydrogen fuel cell vehicles due to its simple structure, high hydrogen storage density, and fast filling and discharge speed. On-board hydrogen cylinders are the main hydrogen carrying equipment on hydrogen fuel cell vehicles.

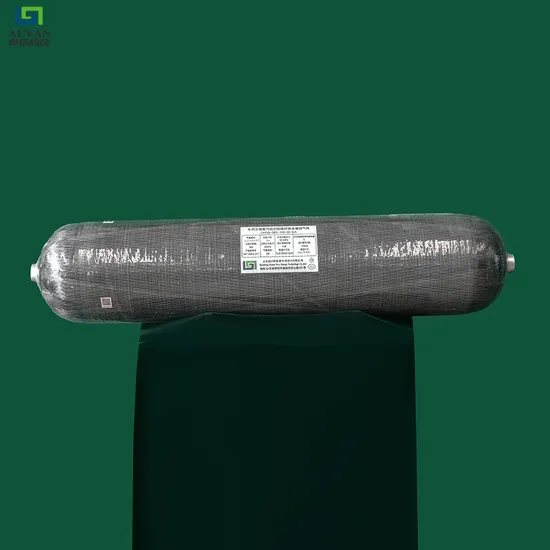

The advantage of the AUYAN Hydrogen cylinder is lightweight, impermeable Type III cylinder technology, coupled with the high-precision gas-flow control provided by our qualified high-pressure hydrogen valve. The result is a certified, cost-effective hydrogen-storage solution that is ideal for private and fleet automobiles, transit buses, fuel-cell forklifts, stationary storage, and bulk-hauling applications.
Product Parameters

Type	Item	Model	Parameters of Hydrogen Cylinder
			Work Pressure/MPA	Cylinder outer diameter/mm	The length/mm	The water volume/L	Weight/Kg
III Type Cylinder	140L Gas Cylinder	CHG3-346-140-35S/A	35	376	1800	140	78
	140LGas Cylinder	CHG3-345-140-35S/A	35	375	1790	140	75
	170L Gas Cylinder	CHG3-383-170-35S/A	35	415	1790	170	88
	190L Gas Cylinder	CHG3-383-190-35S/A	35	415	1950	190	96
	210L Gas Cylinder	CHG3-383-210-35S/A	35	415	2140	210	105
	385L Gas Cylinder	CHG3-529-385-35S/A	35	580	2050	385	165
IV Type Cylinder	235L Gas Cylinder	CNG4-C-450-235-20S	20	450	1880	235	58
	265L Gas Cylinder	CNG4-C-450-265-20S	20	450	2070	265	65
	305L Gas Cylinder	CNG4-C-450-305-20S	20	450	2400	305	75
	230L Gas Cylinder	CHG4-C-460-230-35S	35	460	1900	230	76
	260L Gas Cylinder	CHG4-C-460-260-35S	35	460	2100	260	90
	66L Gas Cylinder	CHG4-C-356-66-70T	70	410	965	66	45

Packaging & Shipping
Packing with wooden box and shipping method can be negotiated.
Company Profile
Established in June 2011, located in Weifang City, Shandong Province, Shandong AUYAN New Energy Technology Co., Ltd. is an innovative enterprise specialized in manufacturing cryogenic equipment and providing technical services.
The main products are industrial welded insulated cylinders, vehicle intelligent LNG cylinders, small-sized LNG supplying systems, and biological liquid nitrogen tanks. AUYAN is one of the leaders in the Chinese new energy industry.
Abides by the core values of "Respect, Unity, Integrity, Innovation" and takes "building the company to be a happiness platform with all staff, to create, share and realize the ideal of life, And contributing to social development and human progress'' for the mission, AUYAN continues breaking through and innovating, insists on sustainable development, determines to become the leader in global new energy revolutionary.
FAQ
If you have questions about AUYAN® products, here's where you can find the answers. If you don't find the answer to your question here, please contact us by telephone or email.
Q: Application of insulated welded cylinders (Dewars)?
A: AUYAN supplies dewars to safely contain liquefied gases such as nitrogen, oxygen, argon, and carbon dioxide, which are for industry and commerce use. These gases are stored at extremely low temperatures and in a liquid state.
Q: How many different specifications of insulated welded cylinders (Dewars) does AUYAN have?
A:We produce Insulated Welded Cylinders (Dewars) with 6 different specifications: 175 L (Net Capacity 161 L, 67 kg*), 195 L (Net Capacity 179 L, 75 kg*), 210 L (Net Capacity 193 L, 81 kg*), 410 L (Net Capacity 377 L, 158 kg*), 450 L (Net Capacity 414 L, 173 kg*), 499 L (Net Capacity 459 L, 192 kg*)
*The weights above are counted under the circumstance that the density of the cryogenic liquid is 0.42 kg/L.
Q: What is the ideal working pressure of the LNG Vehicle cylinder?
A: The ideal working pressure is 0.8 Mpa - 1.2 Mpa, while the nominal working pressure is 1.59 Mpa.
Q: What is the warranty of your Products?
A: The warranty for the vacuum of equipment is 3 years from the date of sale.
All components come with a limited 1-year manufacturer warranty on defects in material or workmanship from the date of purchase to the original owner.
Q: What trade terms can you apply in the contract?
A: EXW, FOB, and CIF are the regular terms we use.
Q: What are some methods of payment?
A: T/T, L/C, as well as Paypal are supported.
