Combined Cooking Oil Expeller W/ Filters Screw Oil Filter Press Machine

Product Description

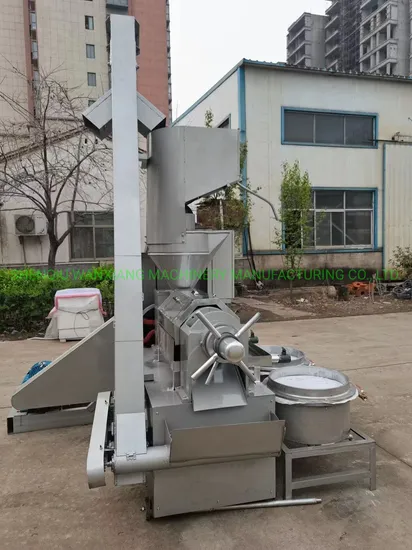

Combined Cooking Oil Expeller w/ Filters Screw Oil Filter Press Machine
About Combined Automatic Screw Oil Press: The automatic combined oil press integrates oil pressing/filtering altogether,that oil enters filters in a non-stop manner. Meanwhile a smart temperature control system is built in,it can pre-heat pressing cage,rings and worms,thus shortening the preparation time,reducing energy consumption and machine wear-down.
Oil Seeds Pressing Processing Plan:
Combined Automatic Screw Oil Press Machine Structure:
Standard Technical Parameters of the Combined Automatic Screw Oil Press Series:

MODEL	CAPACITY (T/D)	POWER (KW)	FILTER POWER (KW)	DIMENSIONS (MM)	OIL RESIDUE (%)	WEIGHT (KG)
YZYL-95	3-5	11	1.1	1860*1600*1700	≤7	850
YZYL-100	4-6	11	1.5	1860*1600*1750	≤7	900
YZYL-120	6-8	15	2.2	2150*1650*1800	≤7	1100
YZYL-130	8-10	18.5	2.2	2350*1650*1900	≤7	1300
YZYL-140	12-14	22	2.2	2500*1650*1950	≤7	1500
YZYL-160	18-20	30	2.2	2650*1700*1950	≤7	1700

Product Advantages:
Factory Advantages:
Your Wise Counsel with Oil Pressing Operations:
1. Upon starting the machine,control the feeding amount each time in a gradually increasing manner,in the meanwhile check drycake & oil extruding status and adjust the oil cake thickness accordingly. After the adjustment,ensure a smooth and evenly feeding each time.
2. Mangage your drycake thickness in the below fashion:
First pressing,cottonseeds 1-1.5mm,soybeans 1-2mm,peanut 2-2.5mm,rapeseeds 1-2mm; Second pressing,soybeans 0.5-1mm,peanut 1-1.5mm,rapeseeds 0.5-1mm; Third pressing,peanut 1-1.5mm.
3. Oil extruding rate will mount to standard after machine reaches 80C.
4. While it runs on,wood sticks can be emplyed to blend in the hopper to avoid conjestion.
5. When you wanna stop the machine,continue feeding in the waste drycakes to extrude all left-inside oil cakes,before you plug out the screw shaft and cleanse the chamber.
6. Handle with care the screw shaft when taking out to avoid damage, place it vertically so weight doesnt disform the screw tread.
Contact us today and get catalog and quotation for your desired Spiral Oil Press!
