Hsg Specialized in Tube Laser Cutting Machine with Intelligent Bus Operating System

Product Description

Laser Cutting Machines of a Great Variety--HSG Laser HSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine and welding machine. The following is the introduction of a type of Three Chucks Tube Laser Cutting Machine:

HI-TECH ENTERPRISE IN CHINA HSGLaser, founded in 2006 as a hi-tech enterprise focusing on R&D, production and sales of laser equipment,
is dedicated to serve global customers with intelligent metal forming solutions. Serve 100+ Countries and Regions HSG Laser has built 4 standardized manufacturing bases in China, 10 branches/subsidiaries/sub-subsidiaries
and 30+ service outlets overseas. Now, we have a total staffff of 1700+ employees, incl. 221+ R&D personnel
and can produce 5000 sets each year by right of 80000m2 production area. Professional R&D Team Our R&D team values high-power machines and key spare parts. Until now, they have developed industry-leading
3D fifive-axis bevel cutting, P30 ultra-high-power autofocus cutting head, four intelligent digital chucks, Alpha T
and HSG-X9000 bus system and HSG-XMT multi-touch operating system.
Large Variety in Fiber Laser MachinesHSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to
be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser
cutting machine, bending machine, welding machine and automation equipment.
Product Description

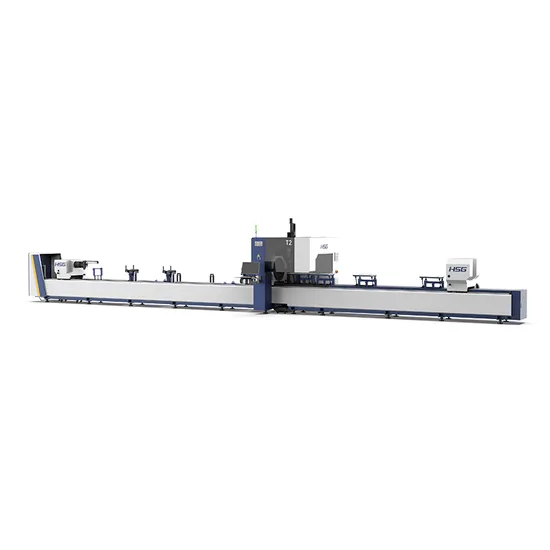

Three-chuck Tube Laser Cutting Machine 3000W
Basic Information
< Independent Servo Follow-up Support >

Both loading and unloading positions are equipped
with highly sensitive and independent servo follow-up
support to ensure stable tube cutting and enhance
cutting precision.
< Fully Portable Three Chucks >

* Fully portable three chucks structure for easy short-tailing
cutting.
* The chucks are designed as two chucks are front and one
chuck is rear to achieve more load.
* C3 chuck is the hollow chuck leading to blanking of
complete tube.
* Standard equipped with 240mm rectangular-circle chucks
and the clamping ability of rectangular tube is improved.
< Intelligent Bus Operating System >
* Various auxiliary functions of tube laser cutting machines to satisfy multiple processing demand
* T2 series is equipped with professional nesting software to achieve efficient management of production progress and price calculations.

Specification

Applications
HSG Fiber Laser Cutting Machines are widely used in Manufacture Billboard, Signs, Advertising, Signage, Metal Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts Nameplates, etc.

Technical Parameter

Model	T2
Power	3000W-6000W
X/Y-axis Positioning Accuracy	±0.03mm/m
Cutting Capacity of Round Tube	20-240mm
Cutting Capacity of Square Tube	20*20-240*240mm
Weight of Single Tube	300kg
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. * Prices for different power are different. For other power, please contact the customer service staff below for consultation. * All testing results and experimental data shall be subject to real machine.

Sample Display
Certifications


Visit & Exhibition


Test & Packing
QUALITY TESTING EQUIPMENT

Tri-linear coordinates measuring instrument, Machine body leveller, Collimator, Precise height measuring instrument,
Guide rails straightness meter, Laser interferometer.


HIGH-STANDARD PACKAGE

To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic fifilm and fifilling foam.





PROFESSIONAL AFTER-SALES SERVICE

Δ One-year Warranty
All unit components are warranted for 1-year, except items listed in the Exclusions section below.
Our after-sales engineer or local agent will supply new or remanufactured component of equal or better quality to replace the failed one.
Δ Exclusions
Unit components subjected to normal wear during the Warranty Period are not covered by warranty, including:

1. Nozzle 2. Protective lens 3. Ceramic ring

Machine breakdown caused by part handling/misuse or corrosion due to exposure to caustic materials, voids the warranty.

Component failure caused by customer misuse/abuse of the unit (e.g. using incompatible materials or wrong axial position settings), voids the
warranty.
