Mold Production Yokohama Type Marine Ship Factory Directly Supply Pneumatic Rubber Fenders

Product Description

Overview
PRODUCT INTRODUCTION OF OUR BOAT DOCK FENDER
Boat dock fender also called ship fender,boat fender, pneumatic fender, rubber fender, yokohama fender, made by rubber & multi layer of rubber-dipped tyre fabric, is a leading anti-collision device for marine application in the world today. Boat dock fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms.

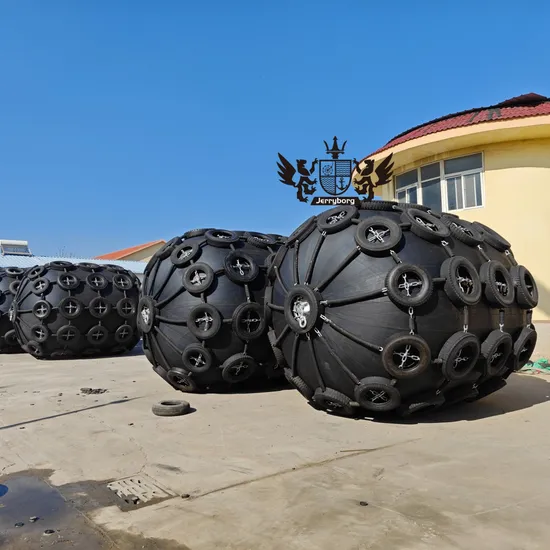

Product Description Floating pneumatic rubber fenders are known as Yokohama fender or Yokohama-type pneumatic fenders. Floating pneumatic rubber fenders are made of the synthetic-cord-reinforced rubber sheet with compressed air inside. The insider air can enable it to float on the water and work as a shock absorbed between two ships (ship-to-ship), or between ships and berthing structures when they come alongside each other on the water. Our Jerryborg Marine Yokohama type floating pneumatic rubber fenders are manufactured and tested fully compliant with ISO 17357. Floating pneumatic rubber fenders can be easily handled and installed with guy-rope or guy-chain because of their lightweight. It can resist the shearing force and maintain energy absorption level under inclined compression up to 15 degrees. Meanwhile, provide low and comparatively even hull pressure. Consisted of several synthetic-cord layers and tough abrasion-resistant rubber, they have consistent performance even under rough conditions and cyclic load. The maintenance cost and damage risk are minimized too.The best material also ensures self-buoyancy and extremely long service life. Pneumatic fenders are available from 500 mm to 4,500 mm in diameters, and from 500 mm to 9,000 mm in length. All sizes of pneumatic rubber fenders are available as sling-type or with a heavy-duty chain & tire net. We also supply vertical hydro pneumatic fenders for submarines.
Note: The floating pneumatic rubber fenders have sometimes been colloquially referred to as "Yokohama Fenders" or "Yokohama type fenders" - ISO 17357:2014 Ships and marine technology - High-pressure floating pneumatic rubber fenders.
Products Details
Model Selection of Pneumatic Fender for Small & Middle Size Ship

Ship Tonnage(T)	Recommendation Size D x L ( m)	Ship Type
50	0.5*1.0	Fishing Ship
100	0.7*1.5-1.0*1.5	Fishing Ship
200	1.0*1.5-1.2*2.0	Fishing Ship, towing Ship
300-500	1.2*2.0-1.5*2.5	Fishing Ship, towing Ship
1000	1.5*2.5-1.5*3.0	Towing Ship, Cargo Ship
3000	2.0*3.0-2.0*3.5	Cargo Ship, Ocean Trawler
10000	2.0*3.5-2.5*4.0	Cargo Ship

Install tools

More video details please contact us
Pneumatic 50 fender size and performance requirements

Nominal size diameter *length mm	Initial internal pressure Kpa	Guaranteed energy absorption(GEA)	ReactionforceatGEA deflection(R)	Hull pressure(Internal pressure) at GEA deflection(P)
		Minimum value at deflection 60±5% KJ	Tolerance±10% KN	Reference value Kpa
500 * 1000	50	6	64	132
600*1000	50	8	74	126
700*1500	50	17	137	135
1000*1500	50	32	182	122
1000*2000	50	45	257	132
1200*2000	50	63	297	126

1350*2000	50	102	427	130
1500*3000	50	153	579	132
1700*3000	50	191	639	128
2000*3500	50	308	875	128
2500*4000	50	663	1381	137
2500*5500	50	943	2019	148
3300*4500	50	1175	1884	130
3300*6500	50	1814	3015	146

3300*10600	50	3067	5257	158
4500*9000	50	4752	5747	146
4500*12000	50	6473	7984	154

Certifications
With our clients
FAQ 1. "I only need one. Can you produce it?" Answer: First of all, if what you need is our standard size product, we can produce it for you when we produce other products of the same size. Secondly, if you need non-standard products, we can customize them according to your requirements. But considering the cost of production and transportation, we suggest you refer to our standard specifications. 2. "Is it possible for you to accept air transportation?" Answer: Actually our fender can be transported by inflatable and deflated (incomplete deflated), but according to our consultation with the airline company, they do not accept products containing air for transportation. 3."Our parent company is in the US, but our projects are in other places. Will you have any logistic problems in processing the order?" Answer: We have a professional logistics team, which can perfectly solve your transportation problems and timely give you tracking feedback on logistics.
4."I have ships but don't know how to choose the size of boat dock fender ,can you help me? "
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable boat dock fender size and quantity for you.
5."I want to try your boat dock fender, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with our boat dock fender. And we also have install video, if still confused, we can make video call to tell you how to install it.

6."What kind of certificate can you provide for boat dock fender?" Answer: CCS, SGS,BV,DNV etc. certificate is available .
