Factory Sales Automatic Butyl Adhesive Coater Machine Insulating Glass

Product Description

Product Description
Introduction of Factory Sales Automatic Butyl Adhesive Coater Machine Insulating Glass
1. The use of advanced pneumatic pump system, the pressure to make the device more stable and energy-saving.
2. Using touch screen control system, the operation more clear and simple.
3. Delivery frequency control system, so that the speed from 1-5 at speed 15-30 m/min optional
4. Pioneered the use of advanced auto-dispensing system can be adjusted within 6-18.5mm
5. Melter using rotary structure, free rotation, glue, maintenance more convenient
6. Large-size plastic cylinder, plus a glue up to 14KG
7. Table can lift (optional type
Product Parameters

1	Power Supply	1P+N 220V / 3P 380V 50Hz 3.45kW
2	Extruding Pressure	15~20MPa
3	Extruding Temperature	110ºC~140ºC
4	Butyl Heating Time	0~30m/min
5	Sealing Speed	0~30m/min
6	Air Pressure	0.5-0.8MPa
7	Sealant Head Adjust Scope	6-18mm; max 30mm (OPTIONAL);
8	MIN glass size	280x450mm
9	Sealant Cylinder	φ200mm
10	Working Altitude	800mm
11	Machine Size	3000mm (L)×620mm (W)×1102mm (H)
12	Machine Weight	480kg

Detailed Photos

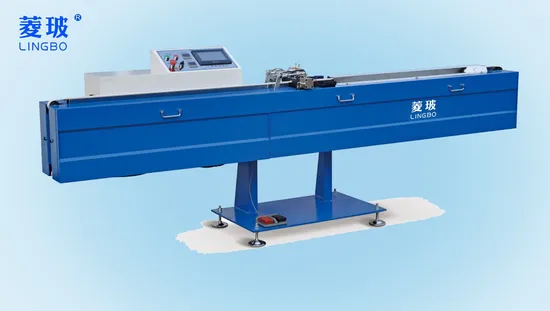

Detailed Photos of Factory Sales Automatic Butyl Adhesive Coater Machine Insulating Glass
Certifications
Factory Sales Automatic Butyl Adhesive Coater Machine Insulating Glass Certificates
Company Profile
Our Customers
Packaging & Shipping
The packaging and shipping of Factory Sales Automatic Butyl Adhesive Coater Machine Insulating Glass
Dear Friends,
If any interst on Automatic Silicone Structure Sealant Spacer Butyl Extruder Machine, Argon Gas Online Filling Machine more than 90%
Sealing Robot, Sealing machines, CNC Glass Cutting Machine,and the complete line related the glass deep process machines,
Please feel free to connect us,
Wish to cooperate with you for long time,
Regards, Megan
