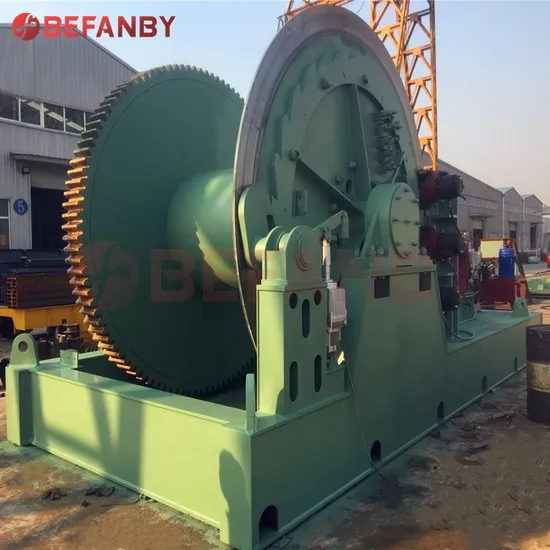

Customized Heavy Industry Double Drum Building Material Electric Winch 20 Ton
Basic Info.
Model NO.
Winch
Type
Electric Winch
Driven Type
Customized
Speed
Customized
Carrying Capacity
Customized
Tonnage
Customized
Reel Number
Customized
Running Mode
Customized
Feature
Antiseptic, Insulating, Explosion-Proof
Certification
CE, ISO 9001
Standard
National Standards
Load Capacity(T)
Customized
Table Size(mm)
5000′ 2500′ 700
Speed(M/Min)
25
Wheel Tread(mm)
2800
Wheel Diameter(mm)
500
Structure
Crane Box and Girder
Motor Power(Kw)
5.5
Max. Wheel Pressure(T)
16.9
Certificate
ISO90001, SGS, CE
Transport Package
According to Customers′ Demands.
Specification
winch
Trademark
BEFANBY
Origin
Xinxiang
HS Code
8428909090
Production Capacity
60 Sets/Month
Packaging & Delivery
Package Size
130.00cm * 60.00cm * 35.00cm
Package Gross Weight
100.000kg
Product Description
Product DescriptionCustomized Heavy Industry Double Drum Building Material Electric Winch 20 Ton
Winch machine is a light and small lifting device that uses a reel to wind a wire rope or chain to lift or pull heavy objects.Winch can be used independently, or as components in lifting, road building and mine lifting machinery. Mainly used in construction, water conservancy projects,forestry, mining, wharf, etc. Winch system mainly includes: the main cylinder assembly,winch frame and cover assembly, Angle gearbox assembly, rotary actuator, the drum brake system, the main brake cooling circulatory system, water brakes, brake shield water cycle system, winch power input and output, crown touch device, etc. The parts of the drill and repair machine winch are set on the pry seat of the power winch.
Details Images
Product Parameters
| Model | Rated Pull Forece(kn) | Rope Speed (m/min) | Rope Capacity(m) | Wire Rope Dia.(mm) | Motor Power(Kw) | Size(L*W*H) | Weight(Kg) |
| JK0.5 | 5 | 22 | 110 | φ7.5 | 3 | 710*690*490 | 200 |
| JK1 | 10 | 22 | 80 | φ9.3 | 4 | 710*610*410 | 300 |
| JK1.6 | 16 | 24 | 115 | φ12.5 | 5.5 | 940*900*570 | 500 |
| JK2 | 20 | 24 | 110 | φ13 | 7.5 | 940*900*570 | 550 |
| JK3.2 | 32 | 30 | 250 | φ15.5 | 15 | 1640*1430*820 | 1150 |
| JK5 | 50 | 30 | 240 | φ30 | 30 | 1900*1790*1100 | 2500 |
| JK8 | 80 | 30 | 210 | φ45 | 45 | 1980*1790*1100 | 3500 |
| JK10 | 100 | 30 | 300 | φ55 | 55 | 2250*2500*1300 | 5100 |
