Inductive Proximity Sensor M8 Inductive Proximity Switch

Product Description

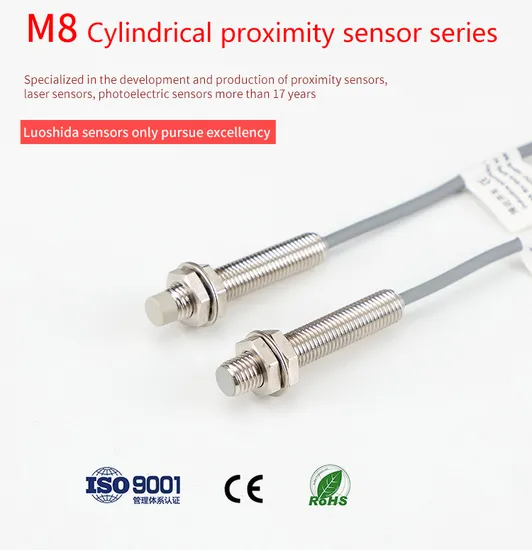

M8 Standard Inductive Proximity Sensor with M8 connector
Size	M8 * 60mm
Mounting	shielded	Non-shielded
Sensing Distance Sn(mm)	1mm/2mm/3mm	2mm/4mm/6mm
Housing Material	brass nickel plated
With or Without LED	with LED
Operating Voltage	10-30VDC
Ripple	<10%
No Load Current	<10mA
Max.Load Current	150mA
Leakage Current	<0.01mA
Voltage Drop	<1.5V
Switching Frequency	2KHz	2KHz
Response Time	0.1ms	0.1ms
Switching Hysteresis	<15%(Sr)
Repeat Accuracy	<3.0%(Sr)
Protection Category	IP67
Operating Temperature	-25°C- +70°C
Temperature Drift	<10%(Sr)
Short Circuit Protection	YES
Overload Trip Point	180mA
EMC	RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration	IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2
Material Active Face	PBT
Connection	With M8 3 pin connector
DC 3 wire 10-30V NPN NO	I1B08*NO-M8-60C	I2B08*NO-M8-60C
DC 3 wire 10-30V NPN NC	I1B08*NC-M8-60C	I2B08*NC-M8-60C
DC 3 wire 10-30V PNP NO	I1B08*PO-M8-60C	I2B08*PO-M8-60C
DC 3 wire 10-30V PNP NC	I1B08*PC-M8-60C	I2B08*PC-M8-60C

LUOSHIDA Sensor (Donguan) Co, td. was estabished in 2012, is a research and development, manufacturing, sales, software deign and development and product service in one of the national high-tech enterprises. The main production: precision opical positioning products, precision optical measurement products, security protection, smart home and other electronic and electrical products. With high quatly R&D and manufacturing capabilities and strict quality control, LUOSHIDA has won unanimous recognition from customers at home and abroad.
The company is headquantered in Humen Town, Dongguan City, LUOSHIDA Industial Park. In order to better serve customers, the company has set up branches in Dongguan, Shenzhen, Foshan, Zhongshan and other major cities, and the sales service network eventually covers all parts of the country and at home and abroad.
The company is mainly engaged in the research and development, producion and sales of industrial sensors, the main producs are: proximity sensor, laser sensor, photoelectric sensor, color marker sensor, optical fiber sensor, color recognition sensor, window blanking sensor, ultrasonic sensor, laser displacement sensor, safety grating (light curtalin) sensor and other products. Widely used in automaton equipment, intelligent manufacturing equipment, new energy lithium battery equipment, electronic semiconductor equipment, intelligent logistics equipment, packaging and printing equipment, intelligent medical, rail transit, photovoltaic energy storage, automotive industry and so on.FAQQ: What are your price terms and payment?
A: We usually offer EXW price or FOB price. The payment method is usually TT, and LC payment is not accepted.
Q: Can you customize the packaging?
A: Our regular packaging is a standard yellow carton on the outside and a single labeled bag on the inside. If the customer has no special requirements, we provide standard packaging with our company's logo. If the customer needs it, we can also provide label packaging with the customer's logo, but the MOQ is 200pcs.
Q: Can I get free samples?
A: Regarding samples, we can provide sample testing. Samples are provided free of charge, but customers need to bear the shipping costs themselves. The maximum number of samples cannot exceed 2.
Q: Is there a warranty for the product?
A: All our products have passed CE certification and provide at least one year of warranty. Our factory has also passed ISO9001 quality system certification. All products need to undergo aging and 100% testing before leaving the factory. Within 1 year from the date of shipment of all products, please contact us at any time if you have any usage problems. If there is a product quality problem, we will replace it with a new one at any time (except for man-made damage).
