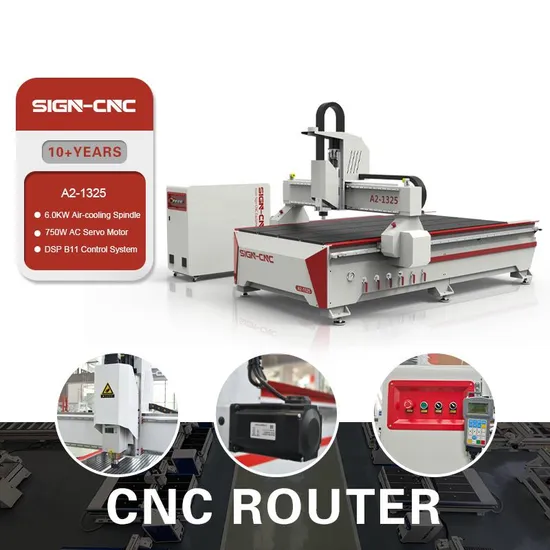

4*8 FT Atc CNC Wood Router Machine 1325 Acrylic Wood CNC Router Price with Vacuum Table

4*8 FT Atc CNC Wood Router Machine 1325 Acrylic Wood CNC Router Price with Vacuum Table

US$4,300.00
1-2 set
US$4,200.00
3-8 set
US$4,100.00
9+ set

Basic Info.

Model NO.
A2-1325
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
220V/50Hz, or 380V
Woorking Area
1300*2500*200mm
Spindle Power
6kw
Guide Rails
25 Square Guide Rails
Command Code
G Code
Control System
DSP B11
Model of Driver
750W
Z- Axis Height
200mm
Oil Lubrication System
Manual
Motor
Servo
Software
Artcam
Key Work
Wood CNC Router
Transport Package
Standard Export Wooden Box
Specification
12 CBM
Trademark
SIGN CNC
Origin
China
HS Code
846599
Production Capacity
300 Set/Month

Packaging & Delivery

Package Size
320.00cm * 226.00cm * 185.00cm
Package Gross Weight
1100.000kg

Product Description

4*8 FT Atc CNC Wood Router Machine 1325 Acrylic Wood CNC Router Price with Vacuum Table
Specification
Model
SIGN-1325
X, Y Working size
1300x2500
Z feed Height
200mm
Table Surface
Vacuum table
X, Y Structure
Rack and Pinion Drive, TBI Linear Square Guide Rail
Z Structure
TBI Linear Square Guide Rail and Ball Screw
Max. Power Consumption
(Without spindle) 2.0Kw
Max. Rapid Travel Rate
33000mm/min
Max. Working Speed
25000mm/min
Spindle Power
6.0KW HQD spindle
Spindle speed
0-18000RPM
Drive Motors
Servo motor and driver
Working Voltage:
AC220V/50/60Hz
Command Language
G code
Control System
DSP B11
X,Y,Z repositioning Accuracy
±0.01mm
X,Y Resolution
<0.01mm
Software
Artcam
Running Temperature
0 degree - 45 degree
Relative Humidity
30% - 75%
Optional Parts
Rotary system,
Panasonic Servo motors

FAQ
1.I need a CNC Router, Can you give me some suggestions?
A: Of course . but to suggest you the most suitable machine, I need to know further informations such as effective processing area , materials etc.
2.If we do not know how to use the machine, can you teach us?
A:Yes,we will ,if you come to China,we will offer you free training until you can use the machine freely..
3.which kind of materials can be processed on this machine ?
A;Wood, MDF stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials
