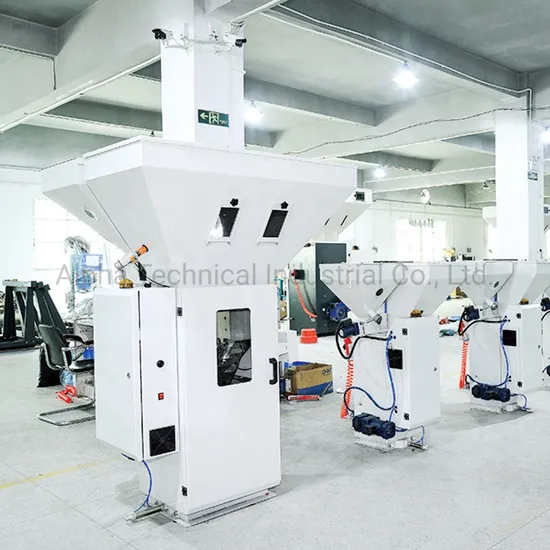

Gravimetric Blender Dosing and Mixing of Powder Polyethylene Granules with Muti-Station Hopper Loader for Extrusion Laminating Machinery^

Product Description

Gravimetric Blender Dosing and Mixing of Powder Polyethylene Granules With Muti-station Hopper Loader for Extrusion Laminating Machinery^
Europeanization weighing mixer CGB-100-3

Installation method	Platform installation type (not including platform production)
Measurement method	Weighing type measurement
No. of measuring components	3 components (3 sets of air valves for unloading)
Mixing amount	50kg/hr
Weighing ratio accuracy	Within 5‰
Proportion of excipients	Main material: 50%, auxiliary material 30%, auxiliary material 20%,
Applications	Granular low-temperature plastic with diameter of 3-4mm
Material	All parts in contact with materials are made of stainless steel
Stirring motor power	0.12kW
	Configuration of the main components of the machine
Controller	Siemens PLC
Display screen	German Siemens SMART700\Domestic FLEXEM
Level switch	German IFM
Weighing sensor	America CELTRON
Safety switch	German SCHMERSRC
Relay	Japan Izumi
Cylinder	Tanwan AIRTAC
Solenoid valve	German
Others	1.With recipe storage function, up to 100 groups of recipes can be stored.
	2.Hierarchical security password control and alarm history record function.
	3.With sound and light alarm.
	4.The parts in contact with the raw materials are made of stainless steel.
	5.Modular and detachable structure design, save space and facilitate cleaning.
	6.Appearance color of equipment (three standard colors).
	7.Power supply voltage: single-phase 230V 50Hz

1 tray 3 feeding machine CAL-5HP-G3

Main technical parameters
Delivery method	One-to-three negative pressure conveying
Main power	Three-phase/400V, 50Hz
Diameter of feeding tube	1.5"
Duct diameter	1.5"
Note	Steel wire rubber hose 1.5"*40M
	4 stainless steelfeeding tube guns
Main Component configuration
The controller	Domestic PLC text integrated control (Chinese and English control screen)
Electrical components	Schneider or Siemens
Fan	Micellar vortex fan
Power	3.5KW

Application:
For the extruding online processes with multi, proportional and high precise of materials like pellets, sheets, regrinds or powder in plastics industry.
Gravimetric dosing and blending unit for direct installation on the inlet flange of a plastics processing machine or on floor stand. The unit can dose and blend up to 4 components by standard and can be tailored for 6 components or more.
Material blending with high accuracy and repeatability, specifically designed for injection moulding/blow moulding machines and extruders with an throughput from 50kg/h to 3000kg/hr. Actual metered and weighed amounts are constantly checked against the pre-selected set values by a modern PLC based control. This guarantees an exceptionally high recipe accuracy (±0.1~±0.3%) by continuous self-optimization
Dosing range:
Main component 5 - 100%, Dosing range: additive 0.5 - 10% - Power supply 1PH/230V 50HZ for CGB50 - CGB400, 3PH400V50HZ for CGB600 - CGB3000.
Specifications

Model	Number of ingredients	Average throughput (kg/h)	Batch Capacity (kg)	Main material ratio (%)	Additive ratio (%)	Main material hopper (L)
CGB-400	4(5/6)	400	4.5	5~100	0.5~10	50
Model	Additive hopper (L)	Mixing chamber (L)	Power supply (V/Hz)	Total power (kW)	Compressed air (kgf/cm2)	Max. noise level (dB)
CGB-400	50	20	1Φ230/50	0.4	6~8	<75

Remarks:
1. The standard machine is not suitable for powder material.
2. The capacity is tested based on continuous running of the machine with material density of 0.8, dia. 3-4mm.
3. 5 or 6 components machine can be particularly made on request.
4. We reserve the right to change specifications without prior notice.
Features:
Modular design and standard components for easy cleaning and changing of the parts.
Stepping drive motor to ensure high accuracy and wide output range.
Can store and read upto 50 recipes for a quick start of the operation.
Dosing screws are chrome plated for durability.
Adopt microprocessor, easy to operate.
Models for more than 2 additives can also be available.
Optional accessories
Stainless main material hopper
Level sensor in dosing hopper.
Double screw and bridge broken device for powder material.
PLC plus touch screen control
Mixing base(It is standard for double color doser, but optional for single
The Installation at site of MB feeder masterbatch blender
