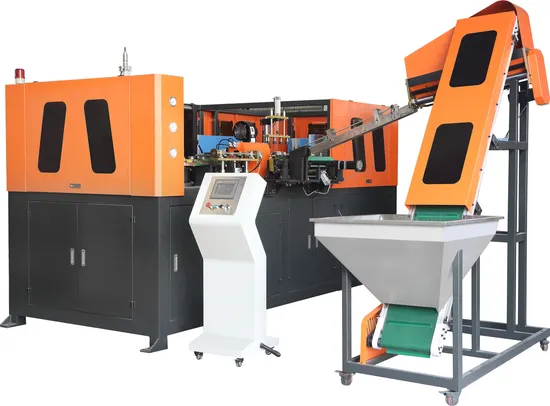

Plastic Blow Moulding Machinery (BM-A4)
| US$30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BM-A4
Raw Material
PET
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
After-sales Service
2 Year
Plasticizing Capacity
35kg/H
Transport Package
Wooden Case
Specification
CE
Trademark
MARS
Origin
Jiangsu, China (Mainland)
HS Code
84773090
Production Capacity
200 Piece/Pieces / Year
Product Description
Plastic Blow Moulding MachineryOurs is a manufacture company
1. Fast speed
2. Save energy
3. Easy operation
We have the patent:
1. Rotary-type automatic plastic blow mold machine patent number: ZL 2006 2 0160012.1
2. Automatic plastic blow mold machine s device of cutting the material folder within the mould.
| brand | Mars |
| product | Fully automatic plastic blow molding machine |
| type | BM-A4 |
| advantages | Fast-speed, simple operation, save energy and the price is cheap |
| The composition | Extrusion, molding, orifice-cutting, removing the tailing |
| What goods it can product | Middle-hollow bottles such as square milk bottles,round milk bottles, popsicle bottles, jelly bottles, medical medicine bottles, pesticide bottles, cosmetic bottles, huoxiangzhengqi water bottles, eyedrop bottles, test-tube, straw, plastic straw etc. |
| Extruder Technical Parameter List | |
| Screw diameter mm | 55 |
| Long-radius rate | 1:25 |
| Extrusion electric machinery power kw | 7.5 |
| Screw rotation speed rpm | 20~65 |
| Plasticizing capacity kg/h | 35 |
| Heating power kw | 8.8 |
| Molding Machine Technical Parameter List | |
| Lock mould type | Pneumatic lock mould |
| Max moulding strength kg | 700 |
| Mould plate dimension(width*height) mm | 130*200 |
| Width between mould plate mm | 120 |
| Max diameter of the machine | 80 |
| Production capacity PCS/day | 30000~80000 |
| Blowing pressure Mpa | 0.4 |
| Cooling water pressure Mpa | 0.2~0.3 |
| Gas consumption quantity m3/min | 0.4 |
| Electric machinery power kw | 0.75 |
