Factory Direct Sales Low Voltage Cable Ant 95mm2 AAC Conductor

Factory Direct Sales Low Voltage Cable Ant 95mm2 AAC Conductor

US$0.15-5.80 1,000 Meters (MOQ)

Basic Info.

Model NO.
AAC conductor
Application
Overhead
Conductor Material
Aluminum
Sheath Material
Bare
Insulation Material
No Insulation
Material Shape
Round Wire
Range of Application
Overhead LV, Mv, Hv
Certification
ISO9001, CE, CCC, RoHS, OHSAS
Brand
Sanwu
Product Name
Overhead All Aluminium Stranded AAC Conductor
Standard
CSA IEC ASTM DIN BS GOST Sas
Applicable Voltage
Low Voltage, Medium Voltage, High Voltage
Type of Conductor
Stranded, Bare
Certificate
ISO9001, CCC, CQC, Ohsas, TUV, etc.
Transportation
by Sea or as Your Requirement
Supplier′s Nature
Manufacturer, Exporter
Core
According to Your Requirement
Manufacturer Experience
Since 2006
Factory Area
200, 081mm2
Transport Package
Wooden Drum/Wooden Steel Drum/Rolls
Specification
1.5-800mm2
Trademark
SANWU CABLE
Origin
Luoyang, Henan, China
HS Code
76149000
Production Capacity
100, 000m/Day

Packaging & Delivery

Package Size
1100.00cm * 1100.00cm * 600.00cm
Package Gross Weight
1500.000kg

Product Description

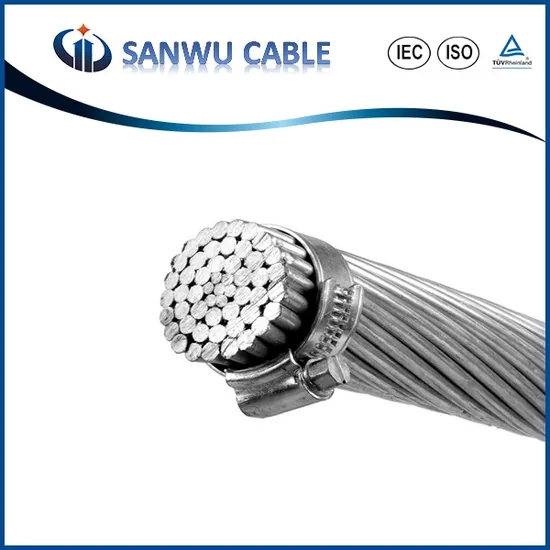

All Aluminium Conductor Overhead Bare Aluminium Stranded Wire AAC Conductor
Product DescriptionMaterial Standard:
ASTM-B232 Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
BS215-2 aluminum conductors steel-reinforced -For overhead power transmission
DIN48204 Steel reinforced aluminum stranded conductors
IEC209 Aluminum stranded conductor steel reinforced
Technical characteristics
We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC Standards, etc.
Code Size Section No. of Strands Diameter Strands Weight Rated Strength Maximunm Resistance
@20°C
AWG o MCM in² mm mm kg/km kg Ω/km
Peachbell 6 13.3 7×1.56 4.66 36.6 254 2.170
Rose 4 21.15 7×1.96 5.88 58.3 399 1.364
Iris 2 33.62 7×2.47 7.42 92.7 611 0.857
Pansy 1 42.41 7×2.78 8.33 117 740 0.681
Poppy 1/0 53.51 7×3.12 9.36 147.5 897 0.539
Aster 2/0 67.44 7×3.50 10.51 186 1136 0.427
Phlox 3/0 85.02 7×3.93 11.8 235 1375 0.339
Oxlip 4/0 107 7×4.42 13.25 296 1738 0.268
Daisy 266.8 135 7×4.96 14.88 373 2191 0.213
Laurel 266.8 135 19×3.01 15.05 373 2254 0.213
Tulip 336.4 171 19×3.38 16.9 470 2786 0.169
Canna 397.5 201 19×3.68 18.38 555 3219 0.143
Cosmos 477 242 19×4.02 20.12 666 3803 0.119
Syringa 477 242 37×2.88 20.18 666 3932 0.119
Dahlia 556.5 282 19×4.35 21.73 777 4431 0.102
Mistletoe 556.5 282 37×3.11 21.8 777 4495 0.102
Orchid 636 322 37×3.33 23.31 888 5154 0.089
Violet 715.5 363 37×3.53 24.73 1000 5791 0.079
Nasturtium 715.5 363 61×2.75 24.76 1000 5960 0.079
Arbutus 795 403 37×3.72 26.07 1110 6303 0.071
Lilac 795 403 61×2.90 26.11 1110 6501 0.071
Anemone 874.5 443 37×3.91 27.37 1222 6821 0.065
Crocus 874.5 443 61×3.04 27.36 1222 7144 0.065
Magnolia 954 483 37×4.08 28.55 1333 7428 0.059

Company Information
Each time we receive an big order with different standards we will make a meeting about the production process in order to make sure the quality and delivery time.
Certificates:
SECRI, ISO9001:2008, OHSAS, CCC, TUV Certifications:
Packaging & Shipping
Package: Support to pack as rolls, or with wooden drum or wooden steel drums.
Shipment terms: DHL, Fedex, UPS, etc. And usually by Sea.
Customer Coming
Welcome come our factory at any time! we trust you will like it!
