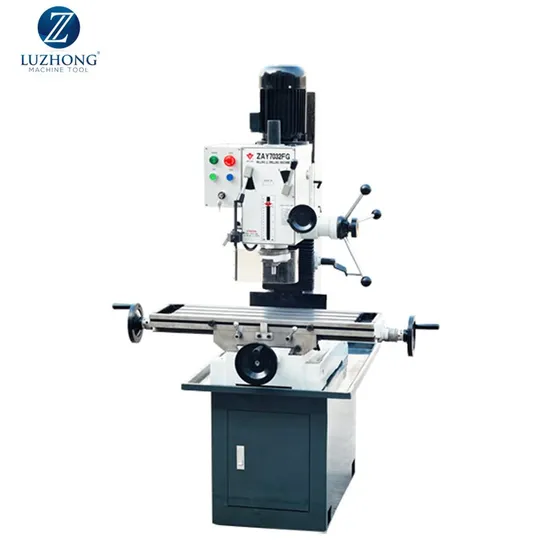

The Most Popular Low Cost ZAY7032FG Milling And Drilling Machine
Basic Info.
Model NO.
ZAY7032FG
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max.drilling dia.
32mm
Max.face milling capacity
63mm
Max.end milling capacity
20mm
Distance betweeen spindle nose and table
450mm
Distance from spindle axis to column sur
260mm
Spindle travel
130mm
Spindle taper
M.T.3 or R8
Spindle speed steps
6
Spindle speed
50Hz 80-1250 60Hz 95-1500 rpm
Swivel angle of headstock(horizontal)
+-90
Table size
800*240mm
Table travel
500*175mm
Main motor power
0.75kw
Transport Package
Plywood Case
Specification
77*88*186
Trademark
LUZHONG MACHINE TOOL
Origin
China
HS Code
8459590000
Production Capacity
7000 Pieces/Year
Packaging & Delivery
Package Size
77.00cm * 88.00cm * 186.00cm
Package Gross Weight
370.000kg
Product Description
Bench Vertical Metal ZAY7025FG/ZAY7032FG/ZAY7040FG/ZAY7045FG Drilling and Milling MahineProduct Description
The main performance characteristics:
Gear-driven type and square column
Milling, drilling, tapping, boring and reaming
Head swivels 90 verticaly
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Product Parameters
Product main technical Specifications:
| ITEM | ZAY7025FG | ZAY7032FG | ZAY7040FG | ZAY7045FG |
| Max drilling capacity | 25mm | 32mm | 40mm | 45mm |
| Max face milling capacity | 63mm | 63mm | 80mm | 80mm |
| Ma.End milling capacity | 20mm | 20mm | 32mm | 32mm |
| Max.distance from spindle nose to table | 445mm | 450mm | 450mm | 450mm |
| Min.distance from spindle axis to column | 203mm | 260mm | 260mm | 260mm |
| Spindle travel | 85mm | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Step of spindle speed | 6 | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 95-1420 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 115-1700 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Swivel angle of headstock(perpendicularly) | 90° | 90° | 90° | 90° |
| Table size | 520×160mm | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table | 140mm | 175mm | 175mm | 175mm |
| Left and right travel of table | 290mm | 500mm | 500mm | 500mm |
| Motor Power | 0.37KW | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Net weight/gross weight | 180kg/240kg | 320kg/370kg | 323kg/373kg | 325kg/375kg |
| Packing size | 680×750×1000mm | 770×880×1160mm | 770×880×1160mm | 770×880×1160m |
